基于YOLOv8网络架构和无人机多光谱影像的柑橘黄化植株识别

doi:10.3969/j.issn.1004-1524.20240607

浙江农业学报 ›› 2026, Vol. 38 ›› Issue (8): 1674-1682.DOI: 10.3969/j.issn.1004-1524.20240607

基于YOLOv8网络架构和无人机多光谱影像的柑橘黄化植株识别

王宏乐¹(), 刘大存², 梁振伟²

¹ 深圳市五谷网络科技有限公司, 广东深圳 518000
² 深圳市丰农数智农业科技有限公司, 广东深圳 518063

收稿日期:2024-07-08 出版日期:2026-08-25 发布日期:2026-09-14
作者简介:王宏乐,研究方向为植物病理学和数字农业。E-mail: teajam@163.com
基金资助:
广东省现代农业产业园项目(GDSCYY2022-046);深圳市科技计划(CJGJZD20210408092401004);深圳市科技计划(KCXFZ20240903093800002)

Recognition of chlorotic citrus trees based on YOLOv8 network architecture with unmanned aerial vehicle multispectral images

WANG Hongle¹(), LIU Dacun², LIANG Zhenwei²

¹ Shenzhen Wego Network Co., Ltd., Shenzhen 518000, Guangdong, China
² Shenzhen SenseAgro Technology Co., Ltd., Shenzhen 518063, Guangdong, China

Received:2024-07-08 Published:2026-08-25 Online:2026-09-14

摘要/Abstract

摘要：

快速筛选黄化植株,有利于果园问题植株的精准定位与防控管理。基于无人机RGB图像的深度学习已被广泛应用于农业领域的快速检测,但基于YOLOv8网络架构的无人机多光谱图像识别报道较少。本研究建立了一种基于YOLOv8网络架构和无人机多光谱影像的柑橘植株识别分析方法,并通过特征波段筛选来进行方法优化和比较。结果表明:植株样本与背景的光谱特征有很大差异,而黄化植株与健康植株较难区分。基于无人机RGB影像建立的模型,对柑橘健康植株的识别效果较佳,但对柑橘黄化植株的识别效果较差。增加训练图片的光谱影像通道数量后, 模型对黄化植株的识别精度呈上升趋势。特征波段筛选对模型识别精度存在影响,当特征比重之和大于90%时,模型预测效果良好。本研究为进一步开发更稳定、高效,可大范围应用的柑橘黄化植株快速监测方法,和探索多光谱影像与深度学习结合的方法在农业领域的应用奠定了基础。

关键词: 柑橘, 黄化植株, 无人机, 多光谱, YOLOv8模型

Abstract:

Rapid screening of yellowed plants is beneficial for the precise positioning and control of unhealthy plants in orchards. Deep learning based on RGB images of unmanned aerial vehicle (UAV) has been widely applied for rapid detection in agriculture, but there are few reports about the deep learning based on multispectral images of UAV. This study proposed a detection and analytical framework for citrus trees based on YOLOv8 network architecturfe and UAV multispectral data, and further optimized and compared the model’s performance via characteristic band screening. The results showed that the features differed between citrus plants and background, but could not differ between healthy plants and chlorotic plants. Detection model of based on RGB images of UAV performed well on healthy citrus plants, but not well on chlorotic citrus plants. By increasing spectral images channels of training images, the recognition accuracy of chlorotic plants was improved. Bands selection had impact on the accuracy. When the cumulative proportion of feature was greater than 90%, the model performed well in prediction. This study provided a basis for developing a widely used, stable and efficient rapid monitoring method for citrus chlorotic plants, as well as advancing the integrated application of multispectral remote sensing and deep learning in precision agriculture.

Key words: citrus, chlorotic plant, unmanned aerial vehicle, multi-spectral, YOLOv8 model

中图分类号:

S24
TP391.41

王宏乐, 刘大存, 梁振伟. 基于YOLOv8网络架构和无人机多光谱影像的柑橘黄化植株识别[J]. 浙江农业学报, 2026, 38(8): 1674-1682.

WANG Hongle, LIU Dacun, LIANG Zhenwei. Recognition of chlorotic citrus trees based on YOLOv8 network architecture with unmanned aerial vehicle multispectral images[J]. Acta Agriculturae Zhejiangensis, 2026, 38(8): 1674-1682.

图/表 4

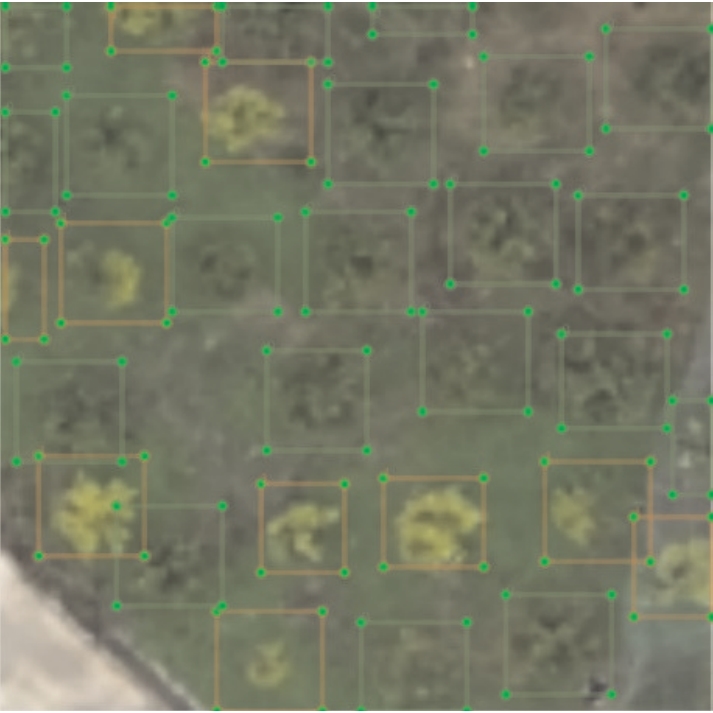

图1 训练集图片样例绿色框表示健康植株;红色框表示黄化植株。

Fig.1 Image samples of training set Green boxes show healthy plants, while red boxes show chlorotic plants.

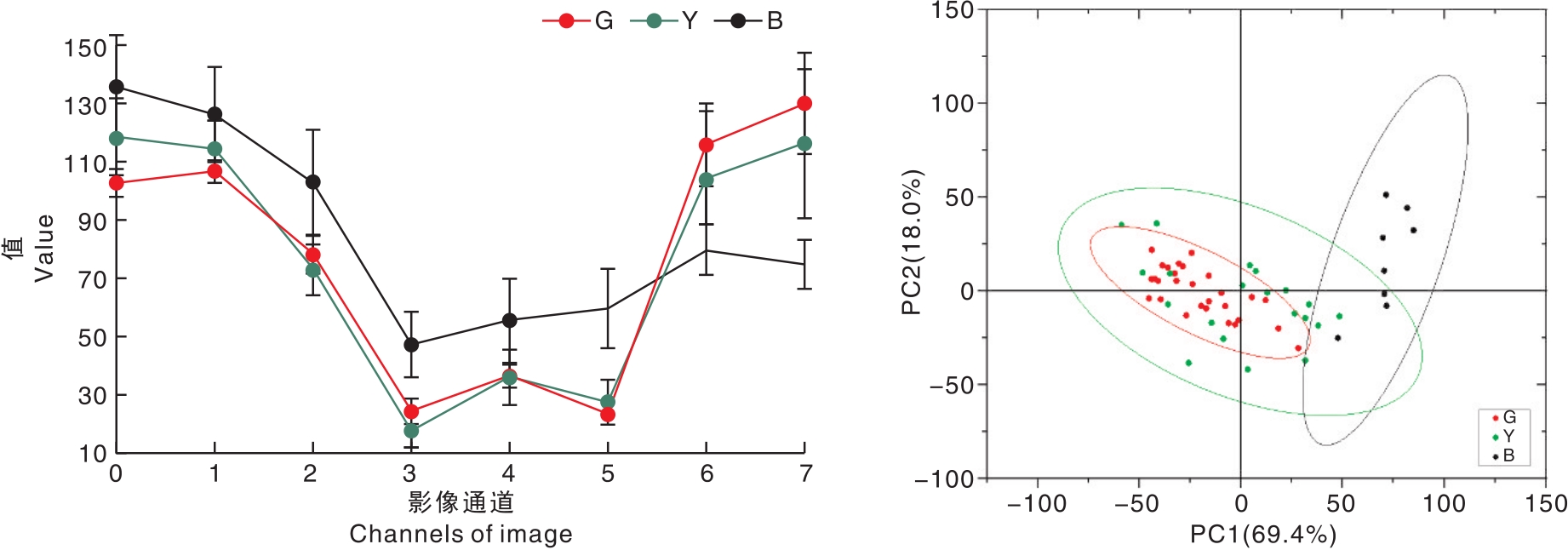

图2 多光谱影像的特征提取(左)与主成分分析(右) G,健康植株;Y,黄化植株;B,背景。PC1和PC2分别为第1主成分和第2主成分。影像通道0~7分别表示R、G、B、B450(450 nm)、G560(560 nm)、R650(650 nm)、RE(730 nm)、NIR(840 nm)。

Fig.2 Feature extraction (left) and principal component analysis (right) of multi-spectral images G, Healthy plants; Y, Chlorotic plants; B, Background. PC1 and PC2 represent principal component 1 and 2, respectively. Channels of image 0-7 correspond to R, G, B, B450(450 nm), G560(560 nm), R650(650 nm), RE(730 nm) and NIR(840 nm) bands, respectively.

表1 多光谱影像在模型上的测试结果

Table 1 Test results of multispectral images based on the constructed model

处理 Treatment	验证集上的结果Results on validation set				测试集上的结果Results on test set
处理 Treatment	F1分数 F1 score	mAP@0.5_1	mAP@0.5_2	mAP@0.5_3	F1分数 F1 score	mAP@0.5_1	mAP@0.5_2	mAP@0.5_3
C3	0.77	0.841	0.969	0.714	0.74	0.783	0.866	0.699
C4	0.83	0.881	0.924	0.838	0.81	0.869	0.931	0.807
C5	0.81	0.845	0.905	0.785	0.80	0.860	0.898	0.822
C6	0.85	0.897	0.946	0.848	0.85	0.886	0.924	0.849
C7	0.80	0.883	0.899	0.866	0.83	0.901	0.923	0.879
C8	0.87	0.894	0.942	0.847	0.86	0.895	0.926	0.865
S3	0.68	0.689	0.926	0.452	0.72	0.758	0.920	0.596
S4	0.75	0.805	0.936	0.675	0.80	0.836	0.891	0.781
S5	0.85	0.897	0.922	0.872	0.84	0.888	0.905	0.870
S6	0.86	0.909	0.921	0.897	0.88	0.916	0.939	0.894
S7	0.84	0.900	0.971	0.829	0.90	0.932	0.943	0.920
S8	0.87	0.894	0.942	0.847	0.86	0.895	0.926	0.865

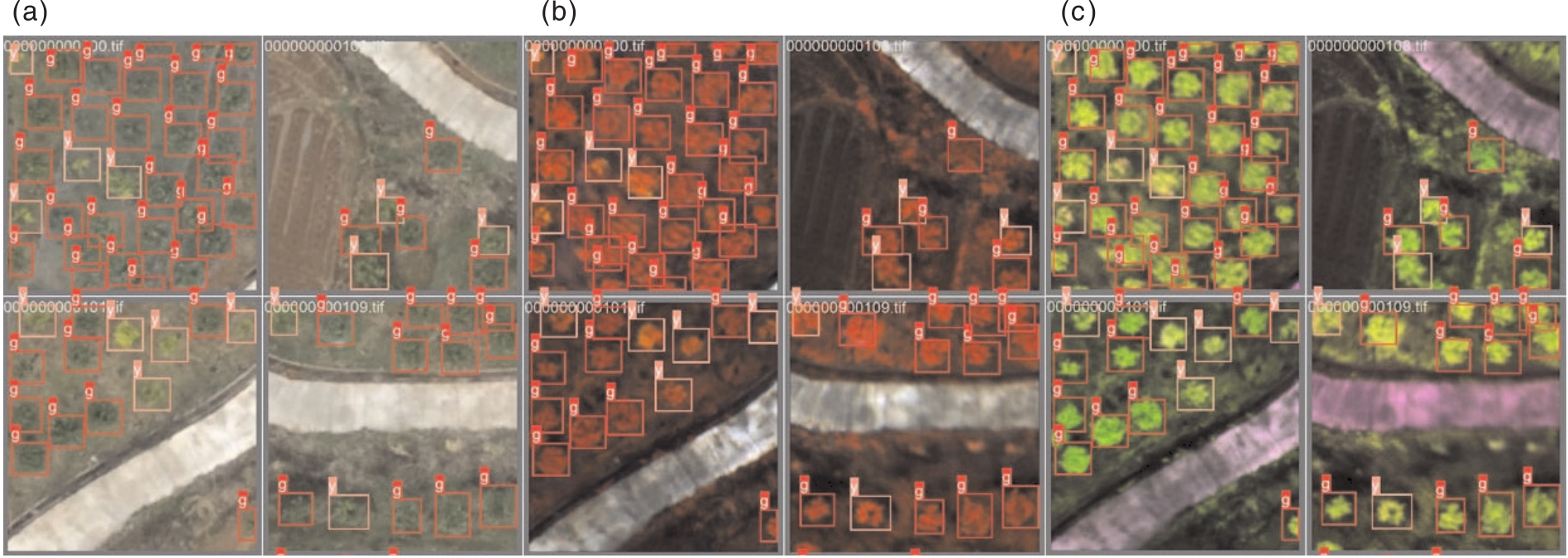

图3 YOLOv8模型对多通道影像的检测结果示例 a、b、c为不同波段随机组成的三通道图像检测结果示例。g,健康植株;y,黄化植株。

Fig.3 Examples of detection results of multi-channel images by YOLOv8 model a, b and c are examples of three random channels image detection results composed of different bands. g, Healthy plants; y, Chlorotic plants.
