基于动态自适应特征网络的草莓叶片病害检测算法

doi:10.3969/j.issn.1004-1524.20250271

浙江农业学报 ›› 2026, Vol. 38 ›› Issue (8): 1660-1673.DOI: 10.3969/j.issn.1004-1524.20250271

基于动态自适应特征网络的草莓叶片病害检测算法

余风军¹(), 周晓平²^,^*(), 龚谭飞³

¹ 河南司法警官职业学院信息技术系, 河南郑州 450046
² 郑州大学电气与信息工程学院, 河南郑州 450001
³ 河南农业大学信息与管理科学学院, 河南郑州 450046

收稿日期:2025-04-01 出版日期:2026-08-25 发布日期:2026-09-14
作者简介:余风军,研究方向为计算机信息技术。E-mail: yufengjun9888@163.com
通讯作者: *周晓平,E-mail: zhouxiaoping6603@163.com
基金资助:
国家自然科学基金(32371633);河南省科技攻关项目(232102210141)

Strawberry leaf disease detection algorithm based on dynamic adaptive feature network

YU Fengjun¹(), ZHOU Xiaoping²^,^*(), GONG Tanfei³

¹ Department of Information Technology, Henan Judicial Police Vocational College, Zhengzhou 450046, China
² School of Electrical and Information Engineering, Zhengzhou University, Zhengzhou 450001, China
³ College of Information and Management Science, Henan Agricultural University, Zhengzhou 450046, China

Received:2025-04-01 Published:2026-08-25 Online:2026-09-14

摘要/Abstract

摘要：

为解决自然环境中草莓叶片病害检测场景复杂、小目标病害检测难度高的问题,提出一种基于动态自适应特征网络(DAFNet)的草莓叶片病害检测算法。首先,在骨干网络中构建多维特征注意力(MFA)机制,以增强对病害特征的关注;然后,在颈部网络设计语义增强模块(SRM)和纹理增强模块(TRM),以提升模型对复杂背景下细节信息的提取能力。此外,采用DySample上采样模块对不同层次的特征图进行自适应优化,以提高对小尺度病害目标的识别精度。结果表明,DAFNet在草莓叶片病害数据集上的平均精度均值(mAP)达到91.6%,相比基线模型提升2.0百分点,同时保持较好的实时检测性能,为实际应用中的草莓叶片病害检测任务提供了有效的解决方案。

关键词: 草莓叶片病害, 目标检测, 注意力机制, DySample上采样模块

Abstract:

Aiming at the problems of complex detection scenarios and difficult detection of small-target diseases in strawberry leaf disease detection under natural environments, we propose a strawberry leaf disease detection algorithm based on a dynamic adaptive feature network (DAFNet) in this paper. Firstly, a multi-dimensional feature attention (MFA) mechanism is constructed in the backbone network to strengthen the model’s attention to disease features. Secondly, a semantic refinement module (SRM) and a texture refinement module (TRM) are designed in the neck network to enhance the model’s capability of extracting detailed information under complex backgrounds. Furthermore, the DySample upsampling module is adopted to adaptively optimize multi-level feature maps, so as to improve the recognition accuracy of small-scale disease targets. Experimental results demonstrate that the proposed DAFNet achieves a mean average precision (mAP) of 91.6% on the strawberry leaf disease dataset, which is 2.0 percentage points higher than the baseline model. Meanwhile, it maintains favorable real-time detection performance, providing an effective solution for practical strawberry leaf disease detection tasks.

Key words: strawberry leaf disease, target detection, attention mechanism, DySample upsampling module

中图分类号:

余风军, 周晓平, 龚谭飞. 基于动态自适应特征网络的草莓叶片病害检测算法[J]. 浙江农业学报, 2026, 38(8): 1660-1673.

YU Fengjun, ZHOU Xiaoping, GONG Tanfei. Strawberry leaf disease detection algorithm based on dynamic adaptive feature network[J]. Acta Agriculturae Zhejiangensis, 2026, 38(8): 1660-1673.

图/表 13

图1 草莓叶片病害图像示例

Fig.1 Example images of strawberry leaf diseases

表1 各类样本的数量分布

Table 1 Quantity distribution of samples

类别 Category	数量分布Quantity distribution
类别 Category	训练集 Training set	验证集 Validation set	测试集 Test set
角叶斑病Angular leaf spot	13 657	3 965	1 951
钙素缺乏症Calcium deficiency	3 125	890	446
叶斑病Leaf spot	12 254	3 546	1 756
白粉病Powdery mildew	9 415	2 687	1 339
总计Total	38 451	11 088	5 492

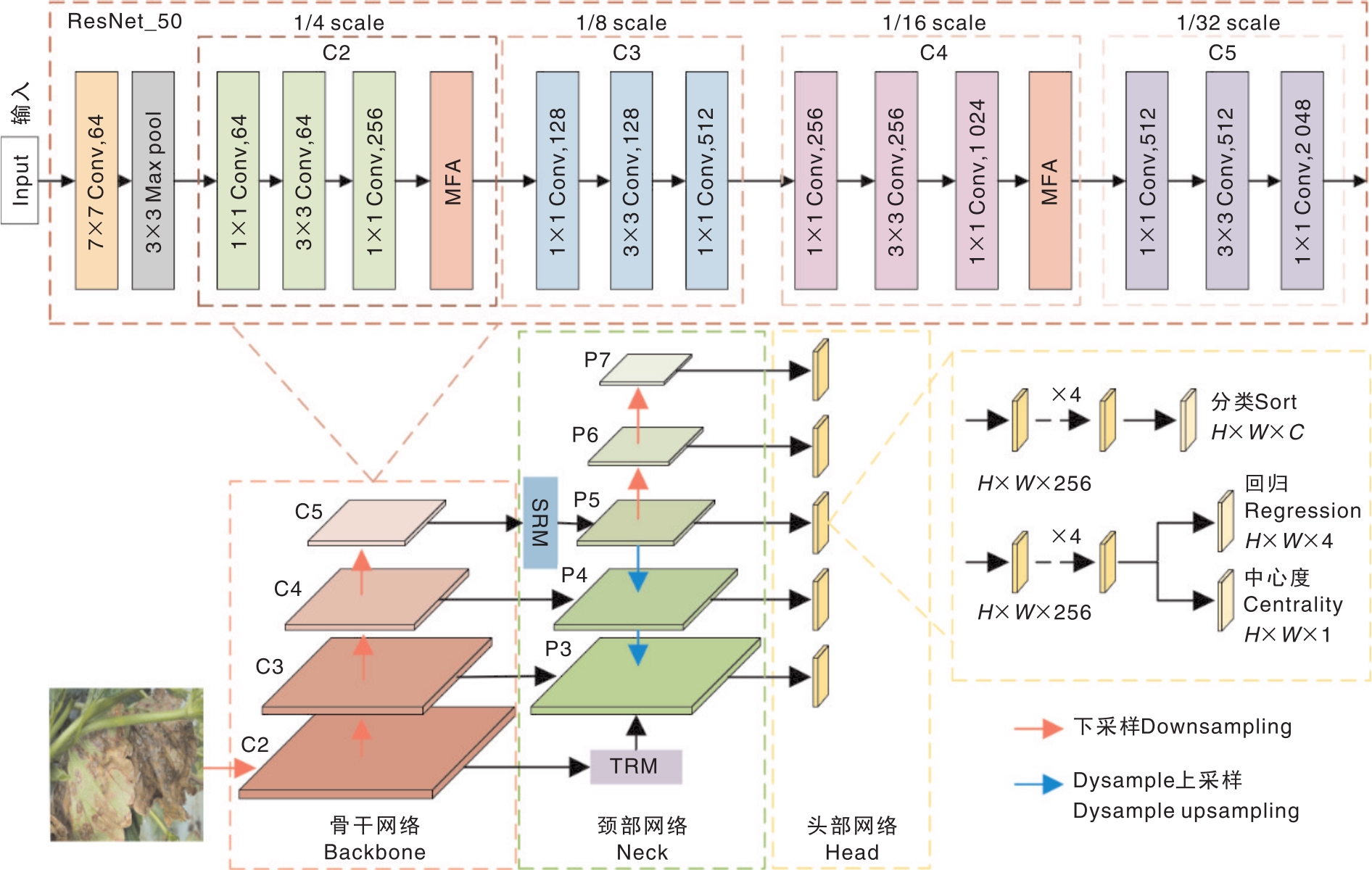

图2 DAFNet的网络结构图 MFA,多维特征注意力;SRM,语义增强模块;TRM,纹理增强模块。

Fig.2 Network structure diagram of DAFNet MFA,Multi-dimensioal feature attention; SRM,Semantic refinement module; TRM,Texture refinement module.

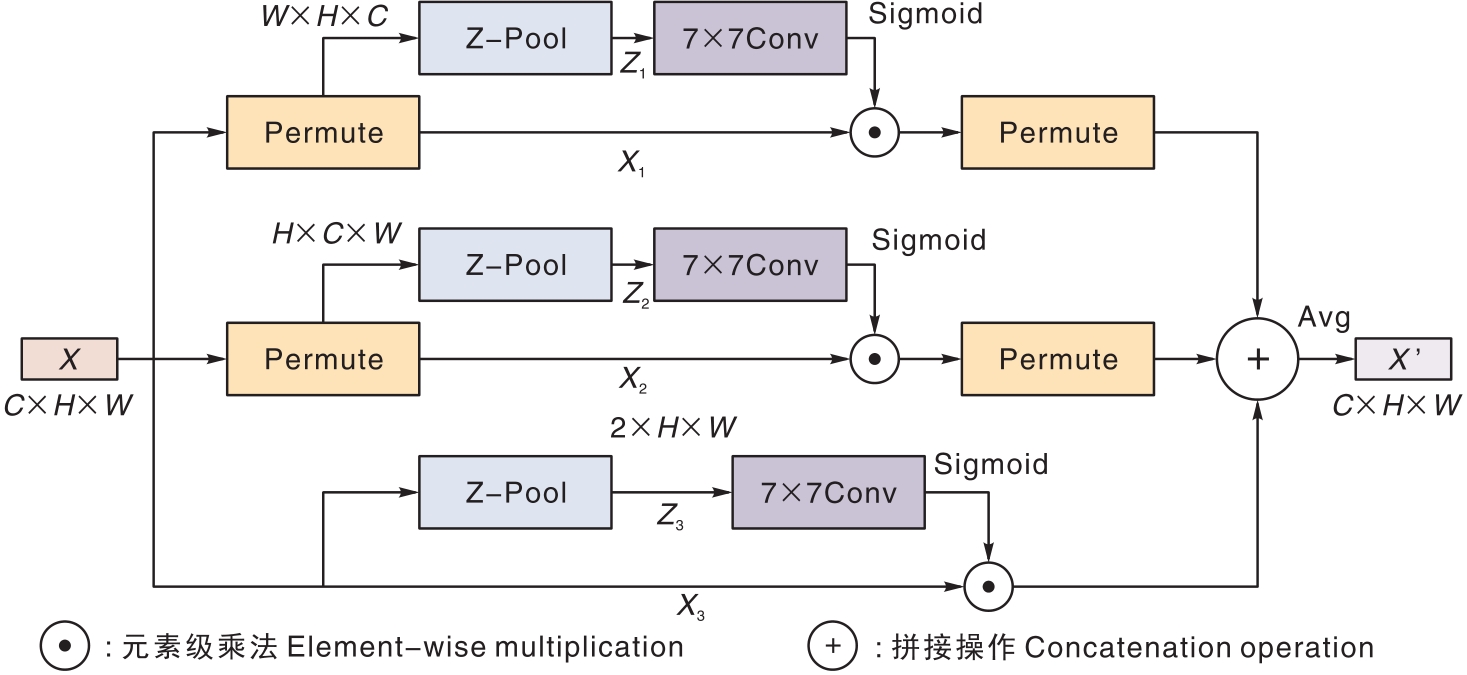

图3 三元注意力网络结构图

Fig.3 Triplet Attention network structure diagram

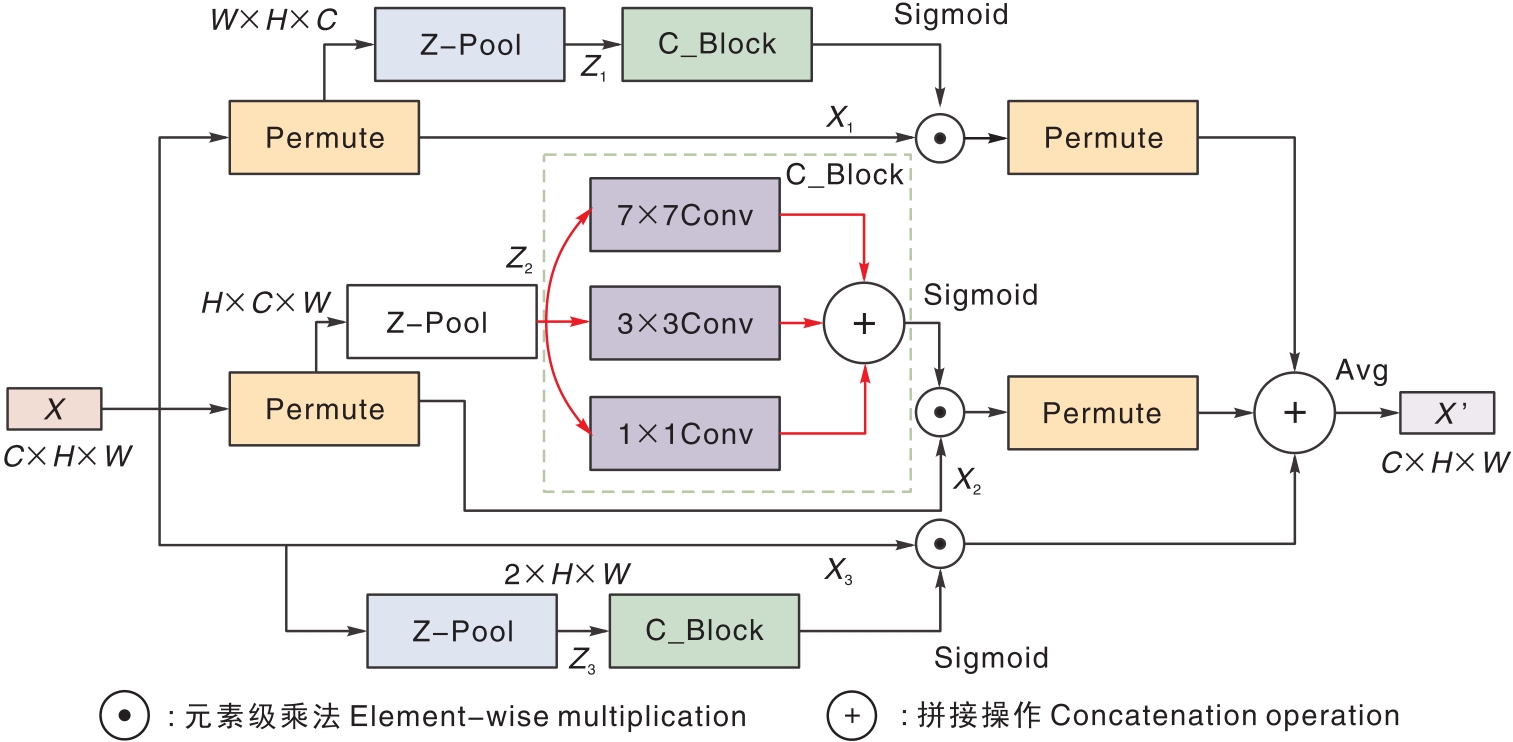

图4 多维特征注意力网络结构图

Fig. 4 Network structure diagram of multidimensional feature attention

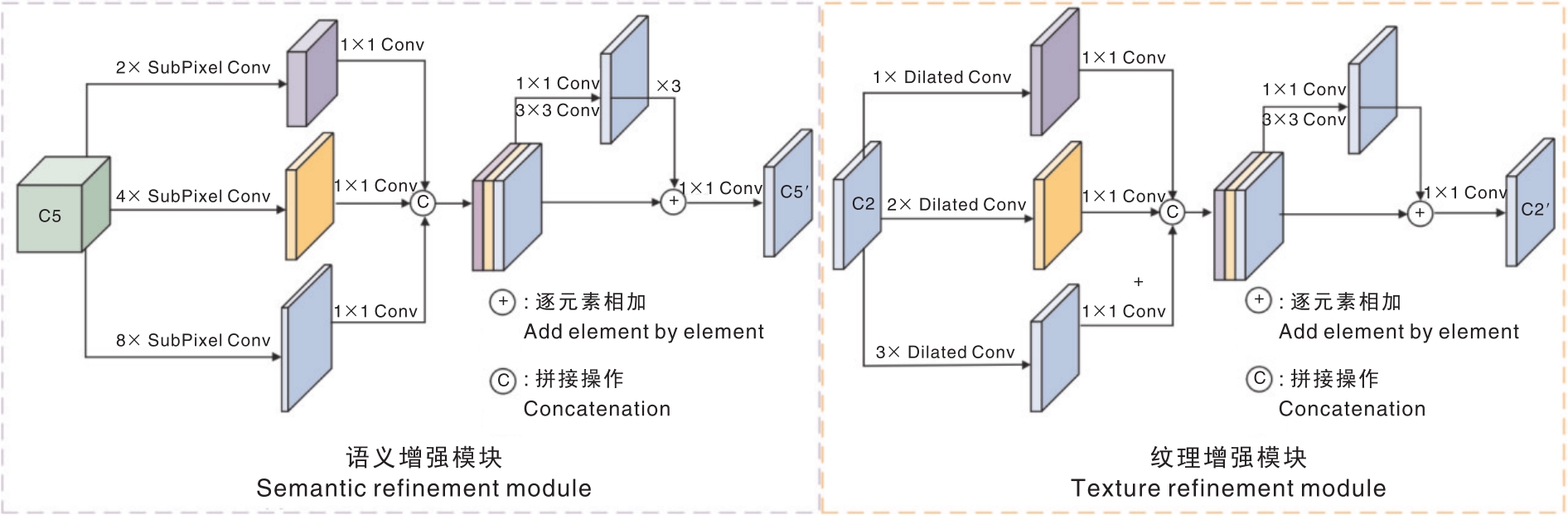

图5 语义增强模块和纹理增强模块的网络结构图

Fig. 5 Network structure diagram of semantic refinement module and texture refinement module

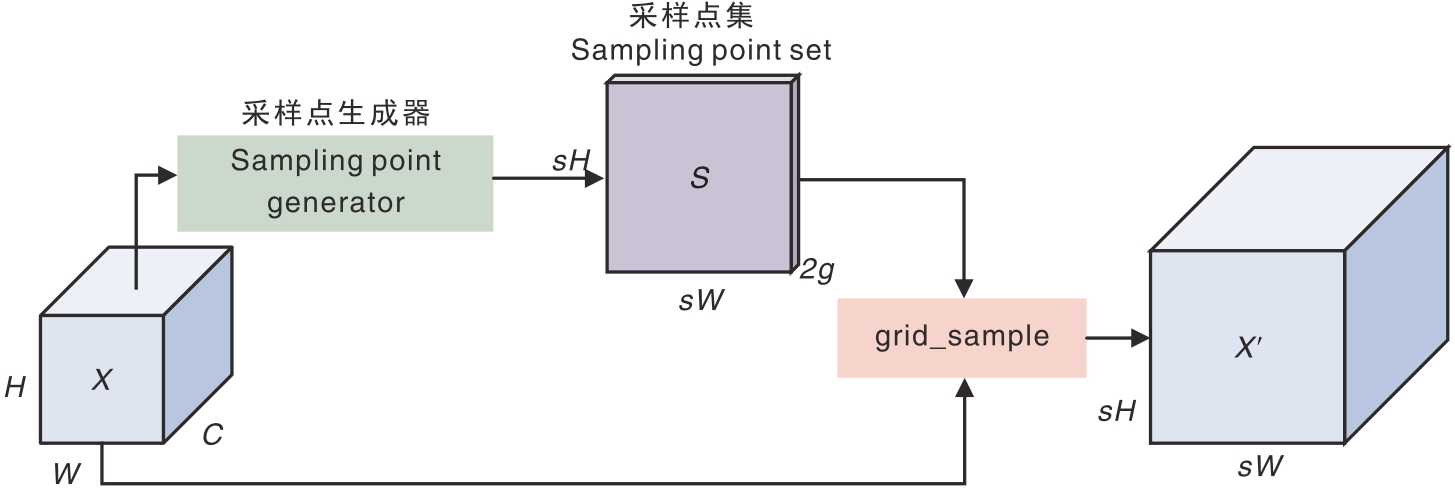

图6 DySample上采样流程

Fig.6 DySample upsampling process

表2 不同注意力机制的性能对比

Table 2 Comparison of performance of different attention mechanisms

注意力机制 Attention mechanism	P/%	R/%	mAP/%	IS/s^-1
无Additive free	90.7	89.3	90.4	60.3
CBAM	90.1	86.8	89.3	58.4
BAM	89.8	86.5	89.1	58.7
EMA	91.8	88.7	90.7	58.3
MFA	92.7	90.9	91.6	58.2

表3 消融试验结果

Table 3 Results of ablation experiments

MFA	SRM+TRM	DySample	P/%	R/%	mAP/%	IS/s^-1	Params/10⁶	FLOPs/10⁹
×	×	×	89.8	88.9	89.6	60.3	31.8	79.0
√	×	×	91.2	89.8	90.9	58.5	32.2	80.3
×	√	×	90.9	89.5	90.4	58.8	32.0	80.1
×	×	√	90.4	89.2	89.9	59.3	31.9	79.8
√	√	×	91.8	90.3	91.1	57.9	32.4	81.2
×	√	√	91.3	90.1	91.2	58.0	32.2	80.9
√	×	√	91.5	90.5	91.4	58.2	32.3	81.2
√	√	√	92.7	90.9	91.6	57.3	32.5	81.5

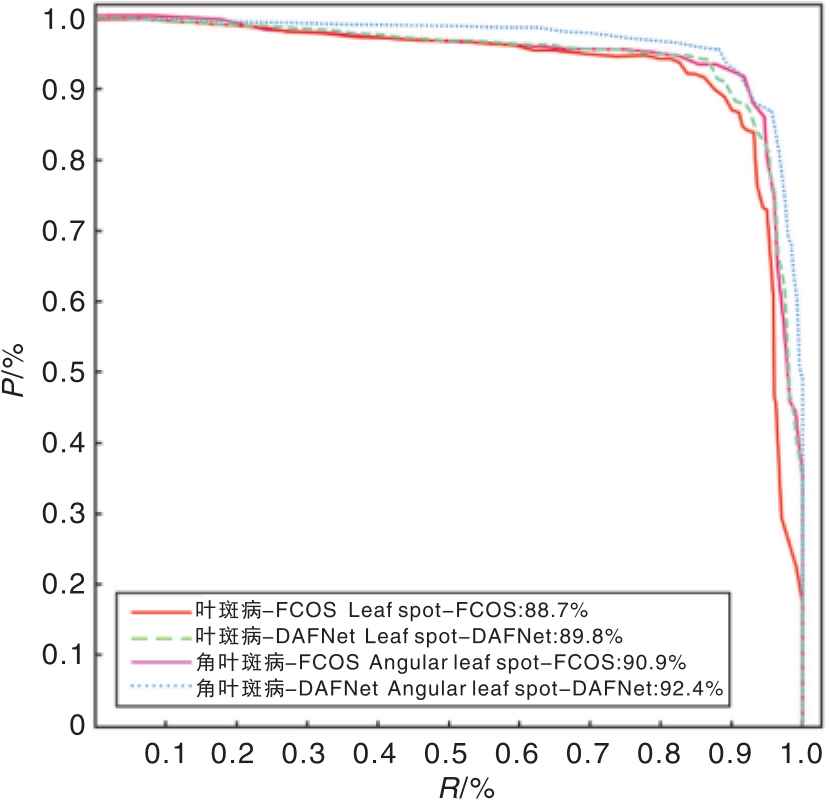

图7 不同模型的P(准确率)-R(召回率)曲线对比

Fig.7 Comparison of P(precision)-R(recall) curves between models

表4 对比实验结果

Table 4 Results of comparative experiments

网络模型Network model	P	R	mAP/%	IS/s^-1	Params/10⁶	FLOPs/10⁹
Faster R-CNN	86.4	85.1	85.7	6.8	102.7	168.3
SSD	85.6	83.8	84.9	17.6	29.4	99.1
FCOS	89.8	88.9	89.6	60.3	31.8	79.0
YOLOv9-M	88.7	86.8	87.4	71.3	20.0	76.3
YOLOv10-M	90.6	87.2	89.1	72.1	15.4	59.1
YOLOv11-M	90.9	88.1	90.3	70.9	20.1	68.0
KTD-YOLOv8	89.2	86.3	87.5	82.6	13.4	—
MCDCNet	88.5	87.0	88.2	45.2	44.85	184.9
LGM-Net	91.3	90.2	90.8	15.4	82.1	—
YOLOv8n-vegetable	88.2	86.1	88.7	119.1	9.1	—
DAFNet	92.7	90.9	91.6	57.3	32.5	81.5

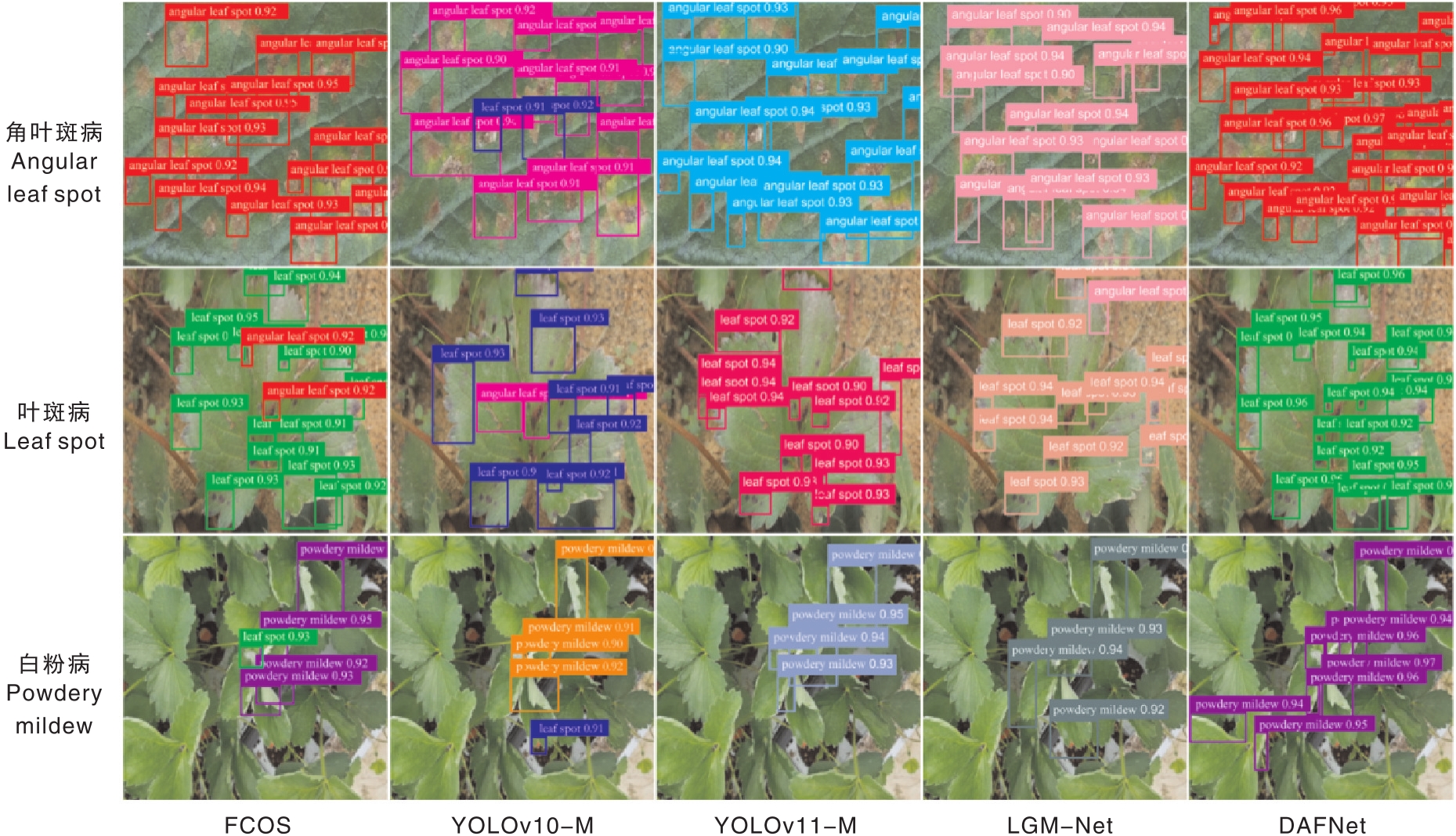

图8 不同算法检测结果的可视化对比

Fig. 8 Visual comparison of detection results of different algorithms

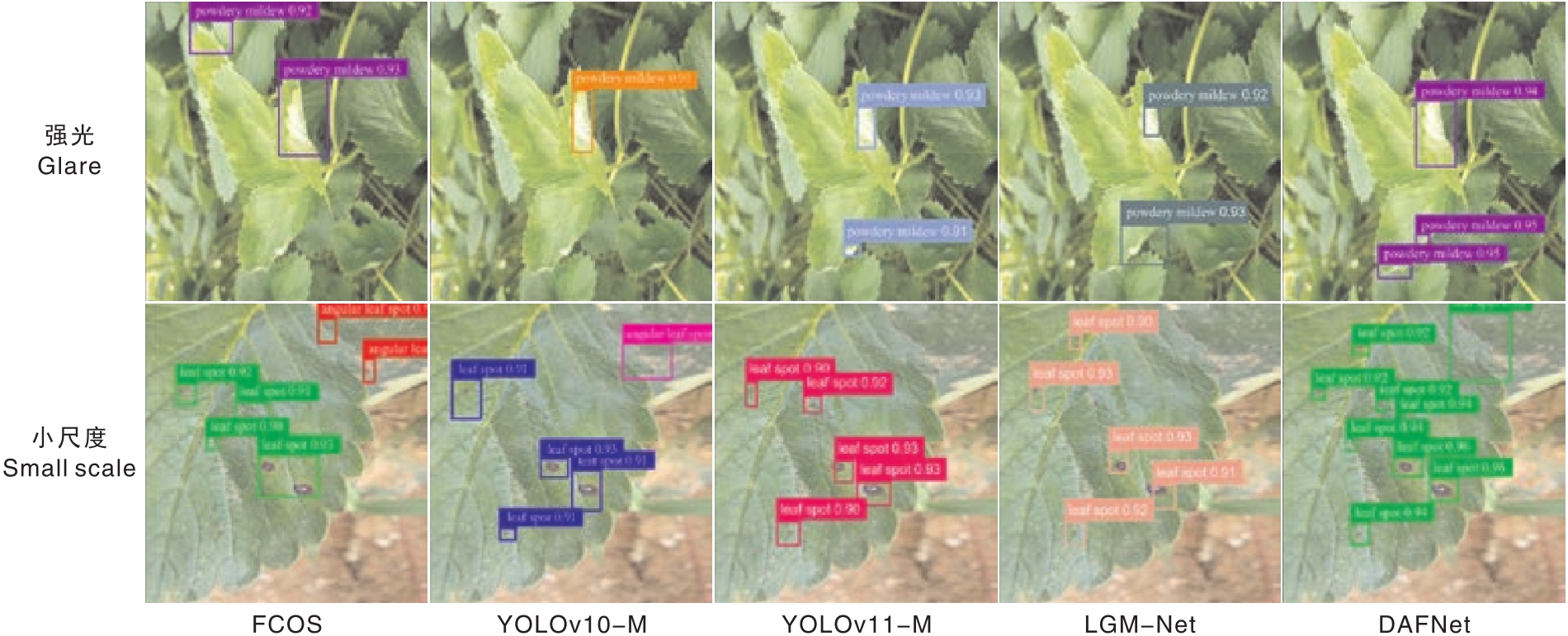

图9 不同场景下草莓叶片病害检测效果对比

Fig. 9 Comparison of detection effect of strawberry leaf disease in different scenarios
