基于喷雾干燥工艺的复合杂粮蛋白固体饮料制备及其冲调品质与消化特性研究

doi:10.3969/j.issn.1004-1524.20260108

浙江农业学报 ›› 2026, Vol. 38 ›› Issue (6): 1061-1072.DOI: 10.3969/j.issn.1004-1524.20260108

基于喷雾干燥工艺的复合杂粮蛋白固体饮料制备及其冲调品质与消化特性研究

黎佳莉¹(), 张程程¹^,², 鲍天牧¹, 程哲³, 李云龙³, 刘大群¹^,²^,^*()

¹ 浙江省农业科学院食品科学研究所, 浙江杭州 310021
² 浙江农林大学食品与健康学院, 浙江杭州 311300
³ 山西农业大学山西功能食品研究院, 山西太原 030031

收稿日期:2026-02-10 出版日期:2026-06-25 发布日期:2026-07-14
作者简介:黎佳莉,研究方向为谷物精深加工与综合利用。E-mail:lijiali0913@163.com
通讯作者: ^*刘大群,E-mail:daqun.liu@hotmail.com

Study on preparation, rehydration quality and digestive properties of multigrain protein solid beverage via spray drying technology

LI Jiali¹(), ZHANG Chengcheng¹^,², BAO Tianmu¹, CHENG Zhe³, LI Yunlong³, LIU Daqun¹^,²^,^*()

¹ Institute of Food Science, Zhejiang Academy of Agricultural Sciences, Hangzhou 310021, China
² College of Food and Health, Zhejiang A & F University, Hangzhou 311300, China
³ Shanxi Institute of Functional Food, Shanxi Agricultural University, Taiyuan 030031, China

Received:2026-02-10 Published:2026-06-25 Online:2026-07-14

摘要/Abstract

摘要：

以小米、黑豆、绿豆蛋白为主要原料,辅以助干剂,利用喷雾干燥工艺制备复合杂粮蛋白固体饮料(multigrain protein solid beverage, MPSB),利用单因素试验优化工艺参数,并研究在优化工艺参数下制得的样品的冲调品质、理化性质与消化特性。结果表明,优化工艺为:以麦芽糊精作为助干剂,添加量为60 g·L^-1,进风温度为160 ℃,蠕动泵速率为4 mL·min^-1,风机速度为85%。在此条件下制备的MPSB具有较好的冲调性,粒径变小且更均匀,基于流变特性判定MPSB溶液属于牛顿流体。经过喷雾干燥加工后,MPSB的Zeta-电位绝对值和体外蛋白质消化率均显著(p<0.05)升高,说明其物理稳定性增强,且更易被人体吸收。综上,本研究制备出一种复合杂粮蛋白固体饮料,不仅具有良好的冲调特性,还具有较高的营养价值。研究结果可为高蛋白杂粮固体饮料的开发提供参考。

关键词: 杂粮蛋白, 喷雾干燥, 消化特性, 固体饮料

Abstract:

In this study, millet, black soybean and mung bean proteins were taken as main raw materials, with drying aids added, multigrain protein solid beverage (MPSB) was prepared via spray drying. Single-factor experiments were conducted to optimize processing parameters. The rehydration quality, physicochemical digestive and properties characteristics of samples obtained under optimal conditions were further investigated. The results showed that the optimal technical parameters were determined as follows: maltodextrin served as the drying aid with a dosage of 60 g·L^-1, inlet air temperature of 160 ℃, peristaltic pump rate of 4 mL·min^-1, and fan speed of 85%. Samples prepared under these conditions exhibited favorable rehydration performance with reduced and more uniform particle size. Rheological analysis confirmed that MPSB solution behaved as a Newtonian fluid. After spray drying, the absolute value of Zeta-potential and in vitro protein digestibility of MPSB increased significantly (p<0.05), indicating improved physical stability and enhanced digestibility for human absorption. In conclusion, the prepared MPSB possesses superior rehydration properties and high nutritional value. These findings can provide technical references for the development of high-protein multigrain solid beverages.

Key words: multigrain protein, spray drying, digestive properties, solid beverage

中图分类号:

TS201

黎佳莉, 张程程, 鲍天牧, 程哲, 李云龙, 刘大群. 基于喷雾干燥工艺的复合杂粮蛋白固体饮料制备及其冲调品质与消化特性研究[J]. 浙江农业学报, 2026, 38(6): 1061-1072.

LI Jiali, ZHANG Chengcheng, BAO Tianmu, CHENG Zhe, LI Yunlong, LIU Daqun. Study on preparation, rehydration quality and digestive properties of multigrain protein solid beverage via spray drying technology[J]. Acta Agriculturae Zhejiangensis, 2026, 38(6): 1061-1072.

图/表 14

表1 小米、黑豆、绿豆蛋白粉的基础成分

Table 1 Basic ingredients of millet, black bean and mung bean protein powders

样品 Sample	水分含量 Moisture content	脂肪含量 Fat content	灰分含量 Ash content	蛋白质含量 Protein content
绿豆蛋白粉Mung bean protein powder	6.68	5.13	4.01	79.39
小米蛋白粉Millet protein powder	5.99	3.21	5.11	81.47
黑豆蛋白粉Black bean protein powder	6.90	3.28	5.00	83.4

表2 不同配比对样品溶解度、结块率和稳定性的影响

Table 2 Effects of different ratios on solubility, caking rate and stability of samples

处理 Treatment	溶解度 Solubility	结块率 Caking rate	不同时间点的稳定性Stability at different time
处理 Treatment	溶解度 Solubility	结块率 Caking rate	3 min	5 min	10 min
C1	24.05±2.63 b	5.17±0.24 bc	100±0 a	97.50±1.08 a	37.50±6.25 c
C2	18.50±1.81 b	5.33±1.18 bc	35.43±3.61 d	25.00±2.50 c	22.50±2.17 d
C3	52.33±0.76 a	1.83±0.24 c	93.75±1.25 b	89.38±1.08 a	37.50±0.01 c
C4	22.73±1.22 b	4.17±1.25 bc	69.58±5.05 c	38.75±9.76 b	33.75±3.31 c
C5	25.81±6.87 b	5.83±1.84 b	96.67±0.72 ab	95.44+0.72 a	87.50±0.01 a
C6	18.10±4.83 b	4.33±1.25 bc	97.08±0.72 ab	95.63±1.65 a	93.75±0.01 a
C7	17.57±2.73 b	6.83±0.62 b	98.75±0.01 ab	97.83±0.38 a	70.83±3.61 b
C8	24.89±8.36 b	12.83±0.47 a	94.17±0.72 ab	91.46±0.95 a	72.29±3.08 b
C9	30.23±1.71 b	11.33±0.62 a	93.54±0.36 b	87.92±0.72 a	70.42±2.89 b

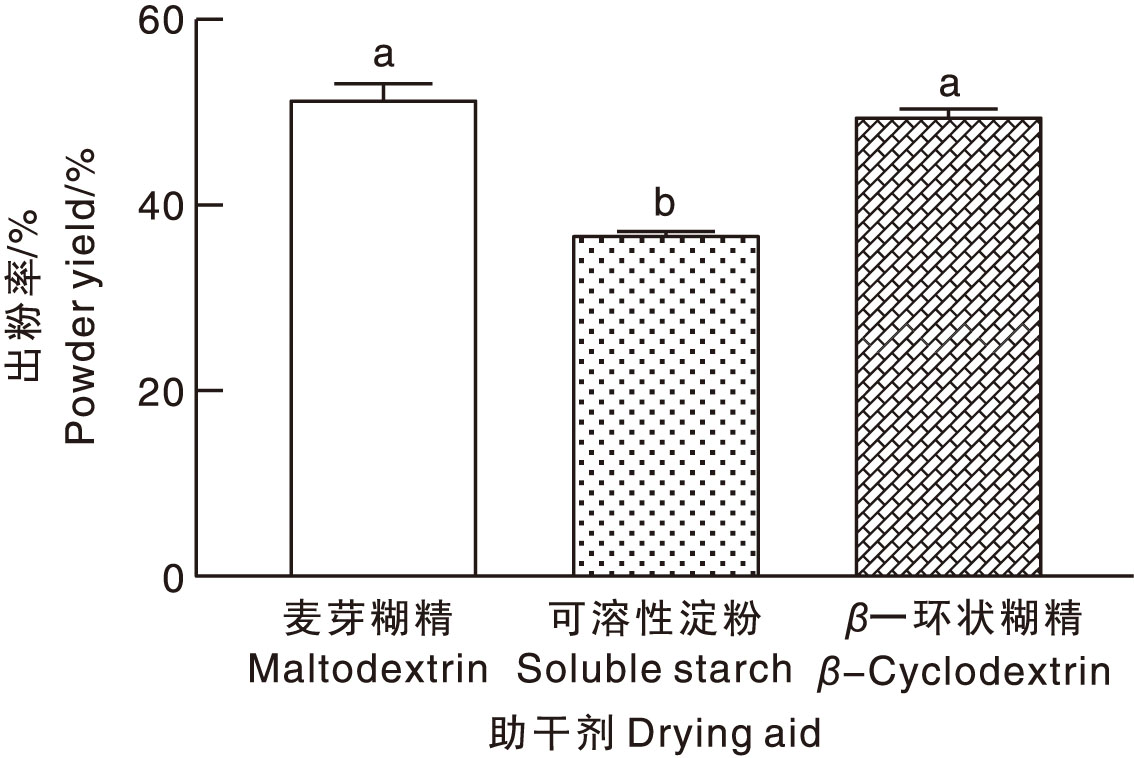

图1 不同助干剂对出粉率的影响柱上无相同字母的表示差异显著(p<0.05)。图2~6同。

Fig.1 Effects of different drying aids on powder yield Bars marked without the same letters indicate significant difference at p<0.05. The same as Fig.2-6.

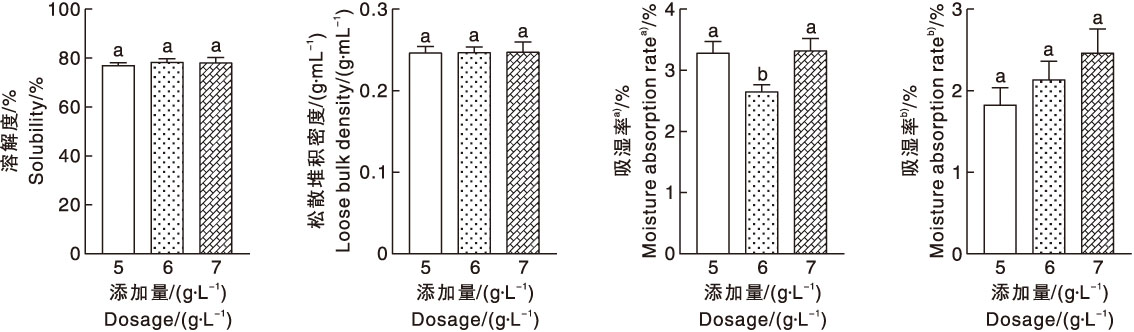

图2 助干剂添加量对样品溶解度、松散堆积密度和吸湿率的影响 a)、b)分别表示饱和碳酸钾溶液和饱和氯化钠溶液下的吸湿率。下同。

Fig.2 Effects of drying aids dosage on solubility, loose bulk density and moisture absorption rate of samples a) and b) represent moisture absorption rates under saturated potassium carbonate solution and saturated sodium chloride solution, respectively. The same as below.

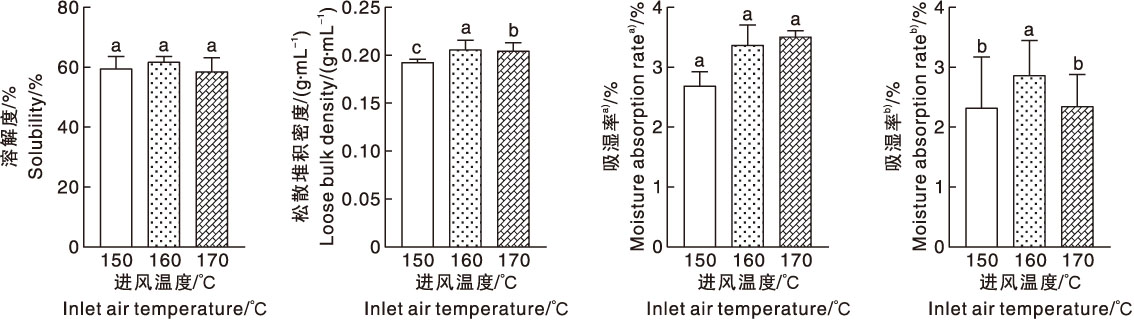

图3 进风温度对样品溶解度、松散堆积密度和吸湿率的影响

Fig.3 Effects of inlet air temperature on solubility, loose bulk density and moisture absorption rate of samples

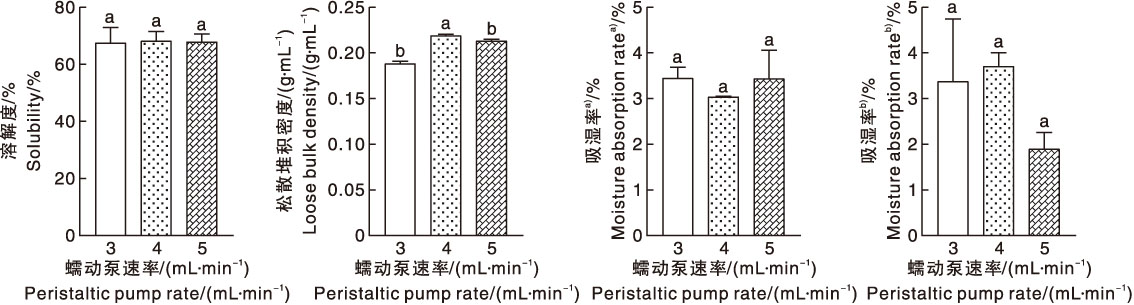

图4 蠕动泵速率对样品溶解度、松散堆积密度和吸湿率的影响

Fig.4 Effects of peristaltic pump rate on solubility, loose bulk density and moisture absorption rate of samples

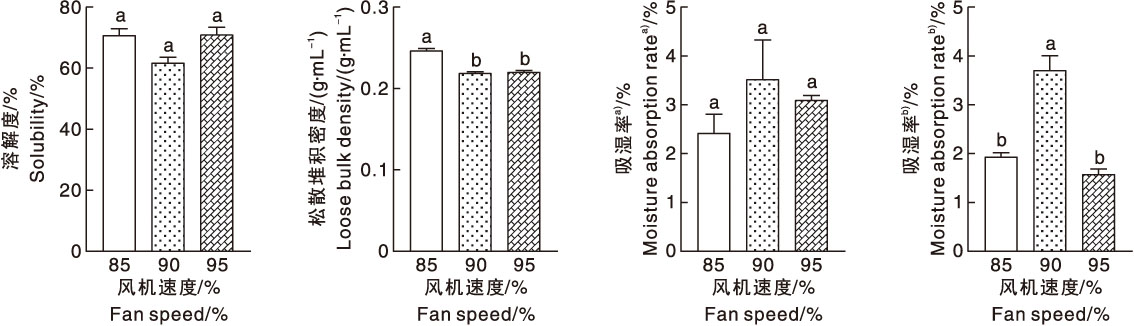

图5 风机速度对样品溶解度、松散堆积密度和吸湿率的影响

Fig.5 Effects of fan speed on solubility, loose bulk density and moisture absorption rate of samples

表3 不同样品的冲调特性与色泽

Table 3 Rehydration characteristics and color of different samples

样品 Sample	松散堆积密度/ (g·mL^-1) Loose bulk density/ (g·mL^-1)	溶解度/% Solubility/%	吸湿率(饱和氯化钠溶液)/% Moisture absoprtion rate (saturated sodium chloride solution)/%	吸湿率(饱和碳酸钾溶液)/% Moisture absoprtion rate (saturated potassium carbonate solution)/%	L^*	a^*	b^*
CPP	0.19±0.06 a	44.04±0.81 b	4.57±0.29 a	4.85±0.34 a	60.19±1.52 b	2.91±0.04 a	15.15±0.38 a
MPSB	0.21±0.01 a	61.88±2.50 a	3.37±0.46 b	3.71±0.41 b	70.99±1.06 a	1.86±0.02 b	11.57±0.29 b

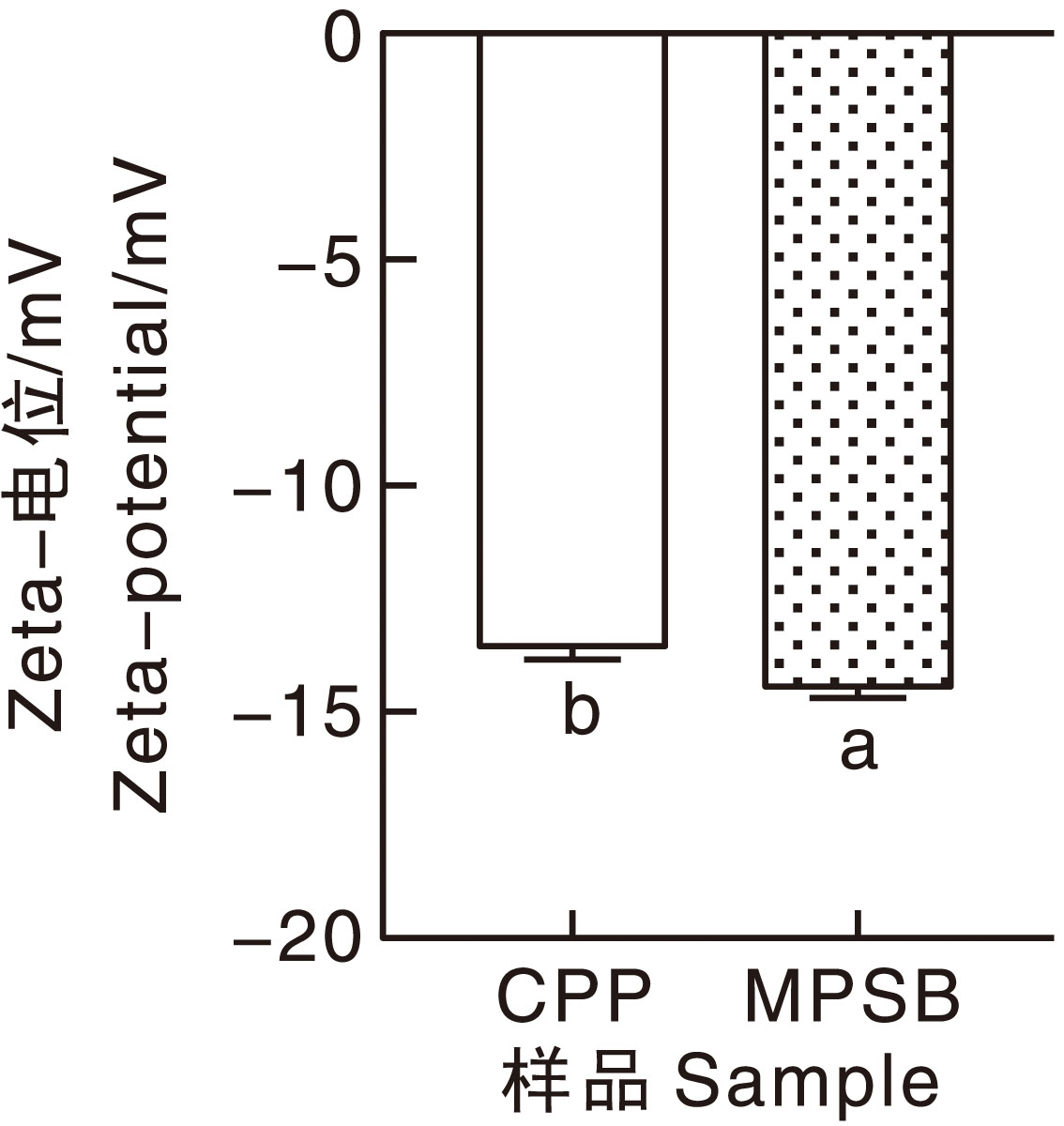

图6 不同样品的Zeta-电位 CPP,基于本研究确定的最优配比的复合蛋白粉;MPSB,基于本研究确定的优化工艺制得的复合杂粮蛋白固体饮料。下同。

Fig.6 Zeta-potential of different samples CPP, Compound protein powder with the optimal ratio determined in this study; MPSB, Multigrain protein solid beverage prepared under the optimized process established in this study. The same as below.

图7 不同样品的扫描电子显微镜观测结果 A、B是未经喷雾干燥处理的CPP样品;C、D是经过喷雾干燥后得到的MPSB样品。

Fig.7 Observation results of different samples by scanning electron microscope Panel A and B are samples of CPP which have not undergone spray drying treatment; Panel C and D are samples of MPSB obtained after spray drying.

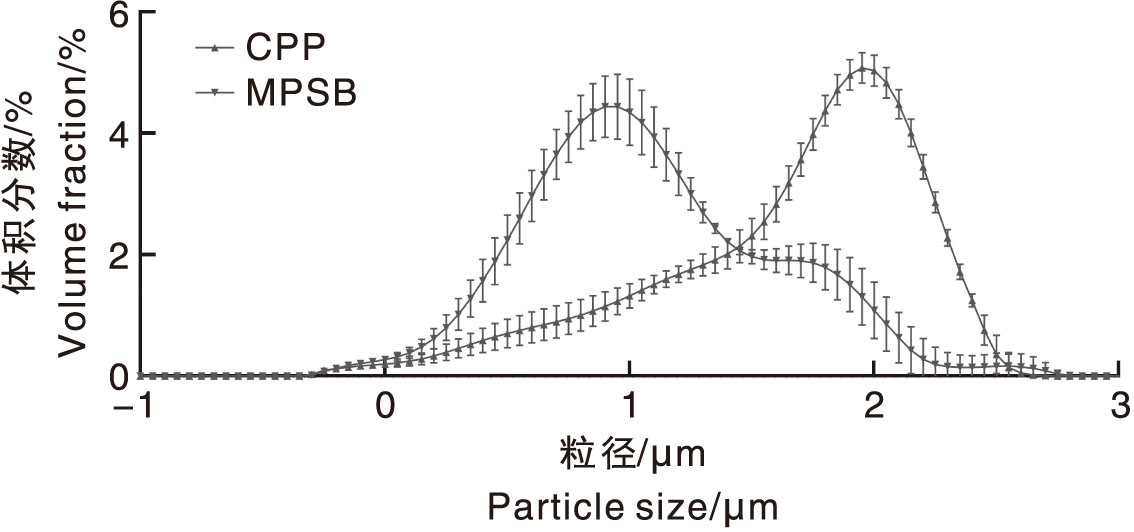

图8 不同样品的粒径分布图中的粒径值均已转换为常用对数值。

Fig.8 Particle size distribution of different samples All particle size values in the figure are converted into common logarithmic values.

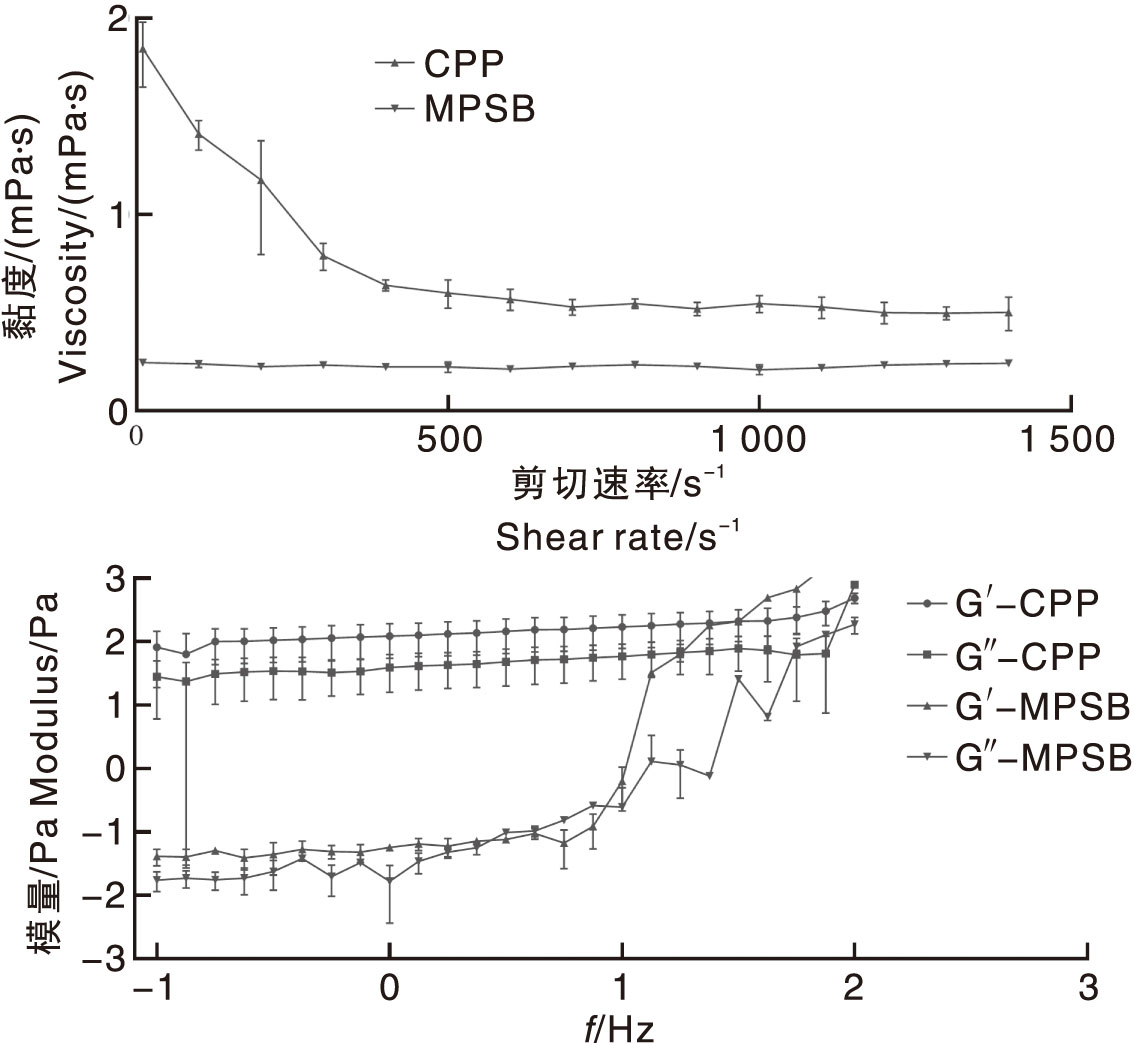

图9 不同样品的流变特性 G',储能模量;G″,损耗模量。图中的黏度、模量、频率(f)值均已转换为常用对数值。

Fig.9 Rheological properties of different samples G', Storage modulus; G″, Loss modulus. All the values of viscosity, modelus and frequency (f) in the figure are converted into common logarithmic values.

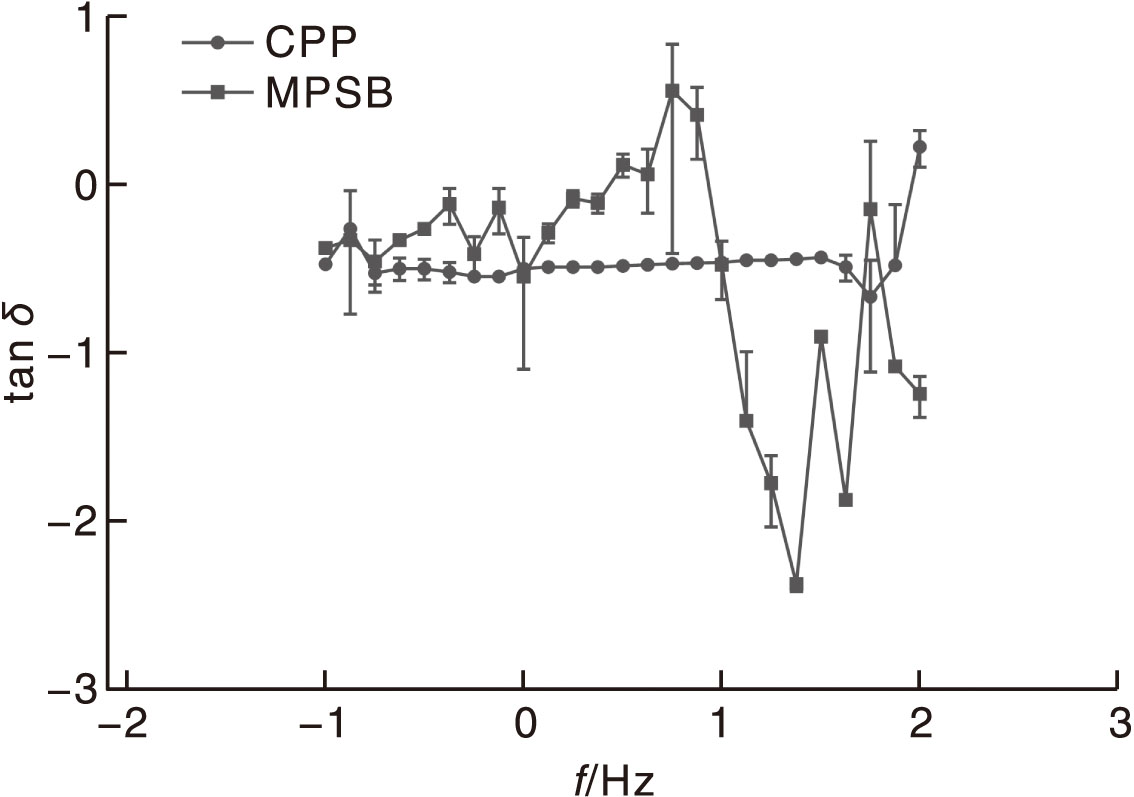

图10 不同样品tan δ随频率的变化曲线 tan δ= G″/G',即损耗模量与储能模量之比。图中的tan δ和频率(f)值均已转换为常用对数值。

Fig.10 Variation curves of tan δ with frequency for different samples tan δ=G''/G', which is the ratio of loss modulus to storage modulus. All the values of tan δ and frequency (f) fin the figure are converted into common logarithmic values.

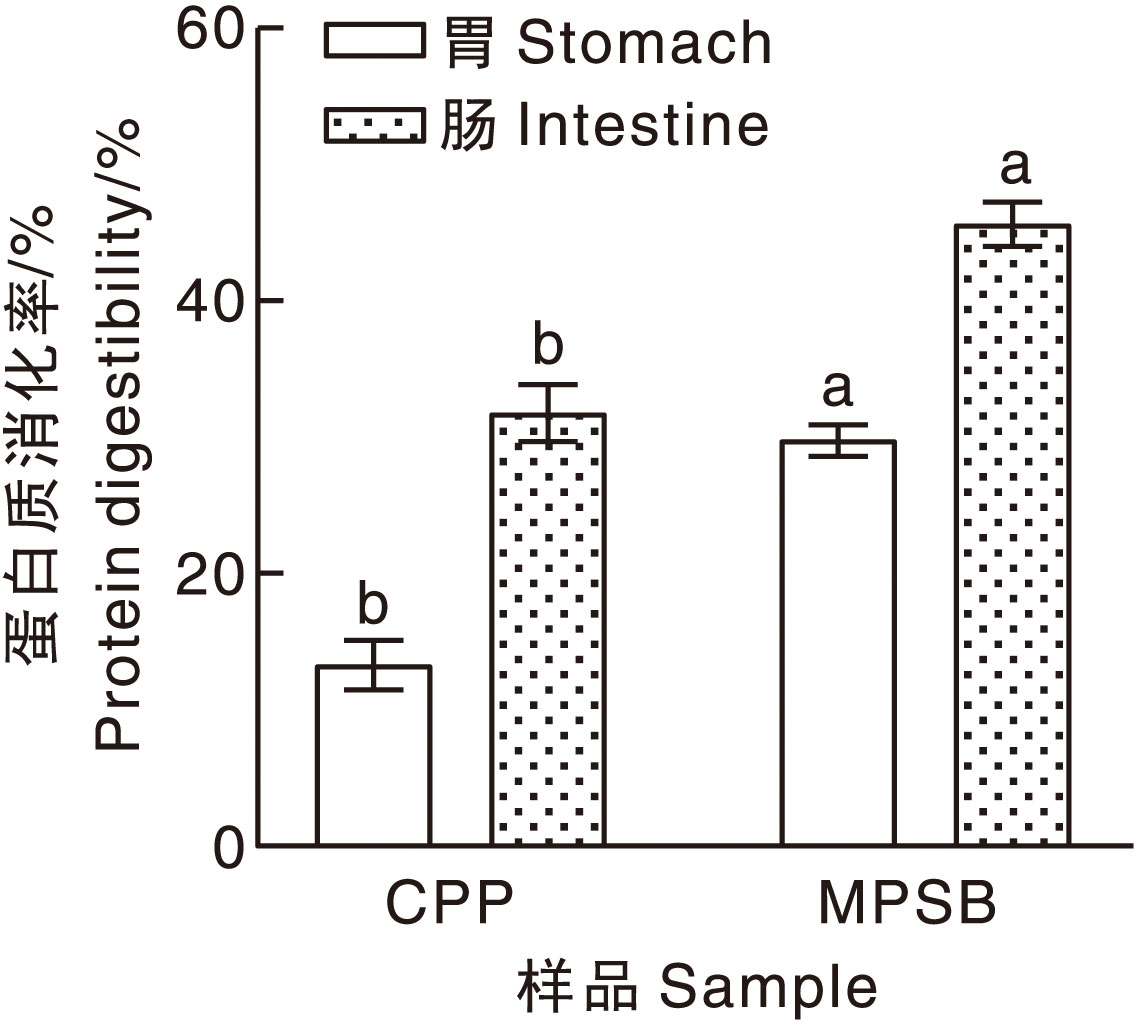

图11 不同样品的的体外蛋白质消化率柱上无相同字母的表示不同样品在同一时期差异显著(p<0.05)。

Fig.11 In vitro protein digestibility of different samples Bars marked without the same letters indicate significant (p<0.05) difference between samples at the same period.

参考文献 36

[36]	HAO W M, LIU L L, LI Y Y, et al. Effect of air volume of spray freeze drying on properties and structure of egg white protein[J]. Journal of Henan University of Science and Technology(Natural Science), 2021, 42(3): 78-84.
[37]	国家质量监督检验检疫总局, 中国国家标准化管理委员会. 固体饮料: GB/T 29602—2013[S]. 北京: 中国标准出版社, 2014.
[38]	ROMO M, D’AURIA G, NITRIDE C, et al. Proteomic characterisation and digestibility score of milk powders obtained through pulse spray drying and traditional spray drying[J]. Food and Bioprocess Technology, 2025, 18(3): 2949-2961.
[39]	DONG X, WOO M W, QUEK S Y. The physicochemical properties, functionality, and digestibility of hempseed protein isolate as impacted by spray drying and freeze drying[J]. Food Chemistry, 2024, 433: 137310.
[40]	王中江, 张潇元, 隋晓楠, 等. 热处理大豆蛋白体外消化产物结构特征分析[J]. 食品科学, 2017, 38(1): 20-26.
	WANG Z J, ZHANG X Y, SUI X N, et al. Structural characteristics of in vitro digestion products of heat-treated soybean protein[J]. Food Science, 2017, 38(1): 20-26.
[41]	郭蔚波, 赵燕, 徐明生, 等. 不同处理方式下蛋白质结构变化与体外消化性关系研究进展[J]. 食品科学, 2019, 40(1): 327-333.
	GUO W B, ZHAO Y, XU M S, et al. Recent progress in understanding the relationship between protein structure change and in vitro digestibility after different treatments[J]. Food Science, 2019, 40(1): 327-333.
[1]	武美杉, 何晓叶, 李琥, 等. 动植物蛋白结构表征与功能特性研究进展[J]. 食品工业科技, 2023, 44(21): 442-449.
	WU M S, HE X Y, LI H, et al. Advances in structural characterization and functional properties of animal-plant mixed proteins[J]. Science and Technology of Food Industry, 2023, 44(21): 442-449.
[2]	田凤珠, 程丞, 王楠, 等. “乳清-黑豆”双蛋白运动营养粉的配方优化[J]. 中国乳品工业, 2024, 52(8): 74-80.
	TIAN F Z, CHENG C, WANG N, et al. Formulation optimization of “Whey-black soybean” blended protein sports nutrition powder[J]. China Dairy Industry, 2024, 52(8): 74-80.
[3]	王晶. 针对特殊人群蛋白粉的研制[D]. 武汉: 武汉轻工大学, 2017.
	WANG J. The development of the protein powder for special people[D]. Wuhan: Wuhan Polytechnic University, 2017.
[4]	THAKUR S, PANDEY A K, VERMA K, et al. Plant-based protein as an alternative to animal proteins: a review of sources, extraction methods and applications[J]. International Journal of Food Science & Technology, 2024, 59(1): 488-497.
[5]	SHARMA N, SAHU J K, BANSAL V, et al. Trends in millet and pseudomillet proteins: characterization, processing and food applications[J]. Food Research International, 2023, 164: 112310.
[6]	SURI S, BALASAHEB K S, YADAV D K, et al. Overview of millet proteins: quality characteristics, effect of thermal/non-thermal processing and applications[J]. Food Bioscience, 2024, 57: 103434.
[7]	DO EVANGELHO J A, VANIER N L, PINTO V Z, et al. Black bean (Phaseolus vulgaris L.) protein hydrolysates: physicochemical and functional properties[J]. Food Chemistry, 2017, 214: 460-467.
[8]	HUANG Z L, LI Y, FAN M C, et al. Recent advances in mung bean protein: from structure, function to application[J]. International Journal of Biological Macromolecules, 2024, 273: 133210.
[9]	魏倩, 张莹莹, 阎欣, 等. 豆类蛋白和谷物蛋白的功能性对比[J]. 粮食加工, 2018, 43(1): 36-41.
	WEI Q, ZHANG Y Y, YAN X, et al. Comparation of the functional properties between cereal protein and legume protein[J]. Grain Processing, 2018, 43(1): 36-41.
[10]	DAVIES R W, JAKEMAN P M. Separating the wheat from the chaff: nutritional value of plant proteins and their potential contribution to human health[J]. Nutrients, 2020, 12(8): 2410.
[11]	郭峰, 姜泽放, 胡晖, 等. 低温等离子体对植物蛋白功能特性的影响[J]. 中国食品学报, 2025, 25(8): 417-427.
	GUO F, JIANG Z F, HU H, et al. Effects of cold plasma on the functional properties of plant protein[J]. Journal of Chinese Institute of Food Science and Technology, 2025, 25(8): 417-427.
[12]	马毓杰, 刘泽辰, 钱虹羽, 等. 共封装微胶囊的制备及其在食品领域中应用研究进展[J]. 食品工业科技, 2026, 47(4): 461-469.
	MA Y J, LIU Z C, QIAN H Y, et al. Research progress on the preparation of co-encapsulated microcapsules and their applications in the food field[J]. Science and Technology of Food Industry, 2026, 47(4): 461-469.
[13]	唐淑萍, 李嘉鑫, 曲鹏辉, 等. 不同干燥方式下金枪鱼蛋白肽品质特性的比较研究[J]. 食品科技, 2025, 50(6): 118-126.
	TANG S P, LI J X, QU P H, et al. Comparative study on the quality characteristics of tuna collagen peptide under different drying methods[J]. Food Science and Technology, 2025, 50(6): 118-126.
[14]	张康逸, 何梦影, 朱笑鹏, 等. 响应面法优化鲜食谷物复合营养粉喷雾干燥工艺[J]. 保鲜与加工, 2020, 20(2): 105-112.
	ZHANG K Y, HE M Y, ZHU X P, et al. Optimization of spray drying technology for production of multiplicate nutrition powder of fresh grain by response surface methodology[J]. Storage and Process, 2020, 20(2): 105-112.
[15]	BRODKORB A, EGGER L, ALMINGER M, et al. INFOGEST static in vitro simulation of gastrointestinal food digestion[J]. Nature Protocols, 2019, 14(4): 991-1014.
[16]	田茂均. 燕麦乳的干燥制粉技术及其固体饮料货架期研究[D]. 成都: 成都大学, 2024.
	TIAN M J. Drying and powdering technology of oat milk and shelf-life study of its solid beverage[D]. Chengdu: Chengdu University, 2024.
[17]	杨子渊. 柿果粉喷雾干燥制备工艺优化及其品质研究[D]. 北京: 北京林业大学, 2022.
	YANG Z Y. The parameter optimization and quality exploration of persimmon powder manufactured by spray drying technology[D]. Beijing: Beijing Forestry University, 2022.
[18]	WONGPHAN P, HARNKARNSUJARIT N. Characterization of starch, agar and maltodextrin blends for controlled dissolution of edible films[J]. International Journal of Biological Macromolecules, 2020, 156: 80-93.
[19]	李明娟, 张雅媛, 游向荣, 等. 低温喷雾干燥技术制备核桃粕蛋白粉的工艺条件优化[J]. 食品工业, 2021, 42(1): 156-161.
	LI M J, ZHANG Y Y, YOU X R, et al. Optimization of processing conditions for low temperature spray-drying of walnut dregs protein powder[J]. The Food Industry, 2021, 42(1): 156-161.
[20]	HABTEGEBRIEL H, EDWARD D, WAWIRE M, et al. Effect of operating parameters on the surface and physico-chemical properties of spray-dried camel milk powders[J]. Food and Bioproducts Processing, 2018, 112: 137-149.
[21]	LAM R S H, NICKERSON M T. The effect of pH and temperature pre-treatments on the structure, surface characteristics and emulsifying properties of alpha-lactalbumin[J]. Food Chemistry, 2015, 173: 163-170.
[22]	张芳. 喷雾干燥法制备食叶草蛋白粉工艺优化及其营养价值评价[J]. 现代食品, 2025(1): 53-56.
	ZHANG F. Optimization of the preparation of protein powder from Rumex patientia L.×Rumex tianschanicus A.LOS by spray drying and its nutritional value evaluation[J]. Modern Food, 2025(1): 53-56.
[23]	QADRI T, NAIK H R, HUSSAIN S Z, et al. Impact of spray drying conditions on the reconstitution, efficiency and flow properties of spray dried apple powder-optimization, sensorial and rheological assessment[J]. Heliyon, 2023, 9(8): e18527.
[24]	丁万成, 小美, 殷硕, 等. 喷雾干燥法微胶囊化技术制备酸马奶粉及其性能研究[J]. 中国乳品工业, 2026, 54(4): 43-50.
	DING W C, XIAO M, YIN S, et al. Study on preparation and properties of sour horse milk powder by spray drying microencapsulation technology[J]. China Dairy Industry, 2026, 54(4): 43-50.
[25]	刘丛丛, 蒋翔宇, 单舒筠, 等. Box-Behnken响应面法优化四逆汤浸膏粉喷雾干燥工艺[J]. 四川化工, 2025, 28(1): 1-6.
	LIU C C, JIANG X Y, SHAN S J, et al. Optimization of spray drying process of Sini Decoction extract powder by Box-Behnken response surface method[J]. Sichuan Chemical Industry, 2025, 28(1): 1-6.
[26]	吕文庆, 孙菁茹, 张舒, 等. 豌豆肽-大豆复配豆乳粉冲调品质及风味特性[J]. 食品科学, 2024, 45(10): 89-97.
	LÜ W Q, SUN J R, ZHANG S, et al. Reconstitutability and flavor characteristics of pea peptide-incorporated soymilk powder[J]. Food Science, 2024, 45(10): 89-97.
[27]	WANG W N, WANG R Y, YAO J, et al. Effect of ultrasonic power on the emulsion stability of rice bran protein-chlorogenic acid emulsion[J]. Ultrasonics Sonochemistry, 2022, 84: 105959.
[28]	刘哲, 葛艳争, 石爱民, 等. 复合喷雾干燥剂对花生分离蛋白粉理化和乳化性的影响[J]. 中国食品学报, 2025, 25(3): 229-238.
	LIU Z, GE Y Z, SHI A M, et al. Effect of co-spray drying agents on physicochemical and emulsifying properties of peanut protein isolate powder[J]. Journal of Chinese Institute of Food Science and Technology, 2025, 25(3): 229-238.
[29]	齐宝坤, 李杨, 王中江, 等. 不同品种大豆分离蛋白Zeta电位和粒径分布与表面疏水性的关系[J]. 食品科学, 2017, 38(3): 114-118.
	QI B K, LI Y, WANG Z J, et al. Relationship between surface hydrophobicity and zeta potential as well as particle size distribution of soybean protein isolates from different varieties[J]. Food Science, 2017, 38(3): 114-118.
[30]	MALAMATARI M, SOMAVARAPU S, TAYLOR K M G, et al. Solidification of nanosuspensions for the production of solid oral dosage forms and inhalable dry powders[J]. Expert Opinion on Drug Delivery, 2016, 13(3): 435-450.
[31]	徐园杰, 周立, 李涛, 等. 板栗速溶粉喷雾干燥工艺优化[J]. 食品研究与开发, 2024, 45(18): 160-168.
	XU Y J, ZHOU L, LI T, et al. Spray drying technology of instant chestnut powder[J]. Food Research and Development, 2024, 45(18): 160-168.
[32]	ARILLA E, IGUAL M, MARTÍNEZ-MONZÓ J, et al. Impact of resistant maltodextrin addition on the physico-chemical properties in pasteurised orange juice[J]. Foods, 2020, 9(12): 1832.
[33]	陈珂, 刘丽莉, 郝威铭, 等. 喷雾干燥入口温度对蛋清蛋白流变和结构特性的影响[J]. 食品与发酵工业, 2021, 47(2): 15-21.
	CHEN K, LIU L L, HAO W M, et al. Effect of inlet temperature of spray drying on rheological and structural properties of egg white protein[J]. Food and Fermentation Industries, 2021, 47(2): 15-21.
[34]	李杰, 于滨, 朱洁, 等. 干燥方法对山药粉性质的影响[J]. 食品工业科技, 2020, 41(4): 62-66.
	LI J, YU B, ZHU J, et al. Effects of drying methods on properties of yam flours[J]. Science and Technology of Food Industry, 2020, 41(4): 62-66.
[35]	白艺朋. 热处理诱导青稞和鹰嘴豆籽粒结构和组分变化及其应用研究[D]. 无锡: 江南大学, 2022.
	BAI Y P. Study on the thermally processing induced structural and component’s changes of highland barley and chickpea kernels and their application[D]. Wuxi: Jiangnan University, 2022.
[36]	郝威铭, 刘丽莉, 李媛媛, 等. 喷雾冷冻干燥风量对蛋清蛋白特性及结构的影响[J]. 河南科技大学学报(自然科学版), 2021, 42(3): 78-84.
