Construction and validation of a simulation model for the floral initiation stage of Brassica oleracea var. italica

doi:10.3969/j.issn.1004-1524.20250693

Acta Agriculturae Zhejiangensis ›› 2026, Vol. 38 ›› Issue (7): 1355-1365.DOI: 10.3969/j.issn.1004-1524.20250693

• Horticultural Science • Previous Articles Next Articles

Construction and validation of a simulation model for the floral initiation stage of Brassica oleracea var. italica

FENG Yue¹(), HE Weijun¹, CAO Jing², SUN Ting², GU Honghui³, CHEN Jun⁴, WU Qibao⁵, ZHANG Wenyu²^,^*(), WU Zaogui¹^,^*()

¹ Zhejiang Provincial Seed Management Station, Hangzhou 310020, China
² Jiangsu Academy of Agricultural Sciences Wuxi Branch, Wuxi 214174, Jiangsu, China
³ Institute of Vegetables, Zhejiang Academy of Agricultural Sciences, Hangzhou 310021, China
⁴ Jiaojiang Seed Affairs Station, Taizhou 318000, Zhejiang, China
⁵ Sanmen Agricultural Technology Extension Center, Sanmen 317100, Zhejiang, China

Received:2025-11-10 Online:2026-07-25 Published:2026-08-20

Abstract

Abstract:

The floral initiation stage of broccoli significantly impacts yield, quality formation, cropping sequence and sowing date management. To accurately predict the time required from transplanting to floral initiation for different broccoli varieties, this study constructed a temperature- and photoperiod-based simulation model of the broccoli floral initiation stage using multi-year meteorological data from two experimental sites in Jiaojiang and Sanmen, Zhejiang Province, together with observational data on the transplanting and floral initiation dates of different varieties. Key parameters and their interactions were identified through Sobol sensitivity analysis, and the potential heat unit required from transplanting to floral initiation (G_v), temperature sensitivity (S_T), optimum temperature (T_o) and photoperiod sensitivity (G) were optimized using a grid search and alternating iteration strategy. Data from the Jiaojiang site were used for parameter calibration, and data from the Sanmen site were used for model validation. The results showed significant differences among varieties in sensitivity to temperature and photoperiod. The average root mean square error of the model was 2.78 d in calibration and 1.33 d in validation, indicating that the model could simulate the floral initiation stage of broccoli with acceptable accuracy and provide a theoretical basis for new variety breeding, production management optimization and regional adaptability assessment.

Key words: broccoli (Brassica oleracea var. italica), floral initiation, temperature, photoperiod, simulation model

CLC Number:

S635.3

FENG Yue, HE Weijun, CAO Jing, SUN Ting, GU Honghui, CHEN Jun, WU Qibao, ZHANG Wenyu, WU Zaogui. Construction and validation of a simulation model for the floral initiation stage of Brassica oleracea var. italica[J]. Acta Agriculturae Zhejiangensis, 2026, 38(7): 1355-1365.

Figures/Tables 6

References 33

[1]	Lindemann-Zutz K, Fricke A, Stützel H. Prediction of time to harvest and its variability of broccoli (Brassica oleracea var. italica) part II. Growth model description, parameterisation and field evaluation[J]. Scientia Horticulturae, 2016, 200: 151-160.
[2]	冯玥, 何卫军, 顾宏辉, 等. 浙江省实施国家西兰花育种联合攻关的成效与经验[J]. 中国种业, 2026(2):36-39.
	Feng Y, He W J, Gu H H, et al. Achievements and lessons from the national joint research program on broccoli variety improvement in Zhejiang Province[J]. China Seed Industry, 2026(2): 36-39.
[3]	赖尚祥, 刘玉梅, 韩风庆, 等. “十四五”我国青花菜遗传育种研究进展[J]. 中国蔬菜, 2026, (1): 14-21.
	Lai S X, Liu Y M, Han F Q, et al. Advances of research on broccoli genetics and breeding during “The 14th Five-Year Plan” in China[J]. China Vegetables, 2026, (1): 14-21.
[4]	浙江省种子管理总站. 2024浙江西兰花新品种大会在台州召开[EB/OL]. (2025-01-14)[2025-10-09]. http://nynct.zj.gov.cn/art/2025/1/14/art164818858963676.html.
[5]	史邵萍, 刘贝贝, 周璐丹. 浙江省西兰花品种比较试验[J]. 浙江农业科学, 2024, 65(1): 99-102.
	Shi S P, Liu B B, Zhou L D. Comparative test of Brassica oleracea in Zhejiang Province[J]. Journal of Zhejiang Agricultural Sciences, 2024, 65(1): 99-102.
[6]	徐亚兰, 王艳, 吴婧, 等. 响水县西兰花品种比较试验[J]. 农业科技通讯, 2024(11): 95-98.
	Xu Y L, Wang Y, Wu J, et al. Comparative test of broccoli varieties in Xiangshui County[J]. Bulletin of Agricultural Science and Technology, 2024(11): 95-98.
[7]	史伟杰, 王婷婷, 郎美丽, 等. 沽源县西兰花品种对比试验[J]. 现代园艺, 2023, 46(7): 78-79.
	Shi W J, Wang T T, Lang M L, et al. Comparative test of broccoli varieties in Guyuan County[J]. Contemporary Horticulture, 2023, 46(7): 78-79.
[8]	俞蓉娟. 西兰花优质高产栽培技术[J]. 现代园艺, 2011, 34(14): 16-17.
	Yu R J. Cultivation techniques of high quality and high yield of broccoli[J]. Contemporary Horticulture, 2011, 34(14): 16-17.
[9]	Dhukuchhu A, Ghimire B, Khan A, et al. Broccoli growth, physiology, and yield response to planting date and cultivar under North Dakota conditions[J]. HortScience, 2026, 61(3): 588-600.
[10]	Shapla S A, Hussain M A, Mandal M S H, et al. Growth and yield of broccoli (Brassica oleracea var. italica L.) to different planting times[J]. International Journal of Business, Social and Scientific Research, 2014, 2(2): 95-99.
[11]	Cammarano D, Taylor M A, Thompson J A, et al. Predicting dates of head initiation and yields of broccoli crops grown throughout Scotland[J]. European Journal of Agronomy, 2020, 116: 126055.
[12]	朱艳, 汤亮, 刘蕾蕾, 等. 作物生长模型(CropGrow)研究进展[J]. 中国农业科学, 2020, 53(16): 3235-3256.
	Zhu Y, Tang L, Liu L L, et al. Research progress on the crop growth model CropGrow[J]. Scientia Agricultura Sinica, 2020, 53(16): 3235-3256.
[13]	蒙继华, 王亚楠, 林圳鑫, 等. 作物生长模型研究现状与展望[J]. 农业机械学报, 2024, 55(2): 1-15.
	Meng J H, Wang Y N, Lin Z X, et al. Progress and perspective of crop growth models[J]. Transactions of the Chinese Society for Agricultural Machinery, 2024, 55(2): 1-15.
[14]	Li Y, Wang J, Fang Q X, et al. Optimal planting dates for diverse crops in Inner Mongolia[J]. Field Crops Research, 2022, 275: 108365.
[15]	Ech-Chatir L, Er-Raki S, Rodriguez J C, et al. Optimizing sowing date, fertilization, and irrigation strategies for winter wheat in Tensift Al Haouz (Morocco) using the DSSAT-CERES-wheat model[J]. Agricultural Water Management, 2025, 312: 109443
[16]	Liu K, Harrison M T, Hunt J, et al. Identifying optimal sowing and flowering periods for barley in Australia: a modelling approach[J]. Agricultural and Forest Meteorology, 2020, 282: 107871.
[17]	Wang Y X, Li S, Zhao J C, et al. Planting date adjustment and varietal replacement can effectively adapt to climate warming in China southern rice area[J]. Agricultural Systems, 2025, 226: 104330.
[18]	Wang J, Zhao L, Hao M, et al. Climate suitability determines optimal yielding of dryland maize: a validation on timely sowing as an ancient wisdom[J]. Field Crops Research, 2025, 328: 109920.
[19]	Ohishi M, Takahashi M, Fukuda M, et al. Developing a growth model to predict dry matter production in broccoli (Brassica oleracea L. var. italica) ‘Ohayou’[J]. The Horticulture Journal, 2023, 92(1): 77-87.
[20]	Zhang T Y, Li T, Yang X G, et al. Model biases in rice phenology under warmer climates[J]. Scientific Reports, 2016, 6: 27355.
[21]	Tan D K Y, Birch C J, Wearing A H, et al. Predicting broccoli development I. development is predominantly determined by temperature rather than photoperiod[J]. Scientia Horticulturae, 2000, 84(3/4): 227-243.
[22]	Mølmann J A B, Steindal A L H, Bengtsson G B, et al. Effects of temperature and photoperiod on sensory quality and contents of glucosinolates, flavonols and vitamin C in broccoli florets[J]. Food Chemistry, 2015, 172: 47-55.
[23]	Yin X, van Laar H. Crop systems dynamics: an ecophysiological simulation model of genotype-by-environment interactions[M]. Wageningen: Wageningen Academic Publishers, 2005.
[24]	Horie T. Global warming and rice production in Asia: modeling, impact prediction and adaptation[J]. Proceedings of the Japan Academy Series B, Physical and Biological Sciences, 2019, 95(6): 211-245.
[25]	李泳梅. 绿雄90西兰花特征特性及高产栽培技术[J]. 上海蔬菜, 2010(2): 39.
	Li Y M. Characteristics and high-yielding cultivation techniques of Lyuxiong 90 broccoli[J]. Shanghai Vegetables, 2010(2): 39.
[26]	苏英京, 宋度林. 中熟青花菜新品种: 绿雄90[J]. 长江蔬菜, 2003(8): 11.
	Su Y J, Song D L. A new mid-maturing broccoli cultivar ‘Lyuxiong 90’[J]. Journal of Changjiang Vegetables, 2003(8): 11.
[27]	Sun T, Miao T H, Hu J N, et al. Quantitative assessment of heat tolerance in new rice varieties through field survey during natural extreme heat events[J]. European Journal of Agronomy, 2025, 170: 127749.
[28]	何道根, 檀国印, 朱长志, 等. 迟熟高产青花菜新品种“台绿5号”的选育[J]. 中国瓜菜, 2020, 33(11): 81-83.
	He D G, Tan G Y, Zhu C Z, et al. Breeding of a new late maturing and high yield broccoli cultivar ‘Tailü No. 5’[J]. China Cucurbits and Vegetables, 2020, 33(11): 81-83.
[29]	浙江省农业农村厅. 浙江省农业农村厅公告 2023第5号[EB/OL]. (2023-04-19) [2025-10-09]. https://nynct.zj.gov.cn/art/2023/4/21/art12292354185103804.html.
[30]	浙江省农业农村厅. 浙江省农业农村厅公告 2022第8号[EB/OL]. (2022-04-13) [2025-10-09]. https://nynct.zj.gov.cn/art/2022/4/15/art158929758941019.html.
[31]	浙江省农业农村厅. 浙江省农业农村厅公告第6号[EB/OL]. (2025-04-16) [2025-10-09]. http://nynct.zj.gov.cn/art/2025/4/18/art12292354185499419.html.
[32]	Hasan Khudhair H, Ali Hanshal M. Effect of vernalization period on growth and yield of broccoli[J]. Bionatura, 2023, 8(2): 1-8.
[33]	Lindemann-Zutz K, Fricke A, Stützel H. Prediction of time to harvest and its variability in broccoli (Brassica oleracea var. italica) part I. plant developmental variation and forecast of time to head induction[J]. Scientia Horticulturae, 2016, 198: 424-433.

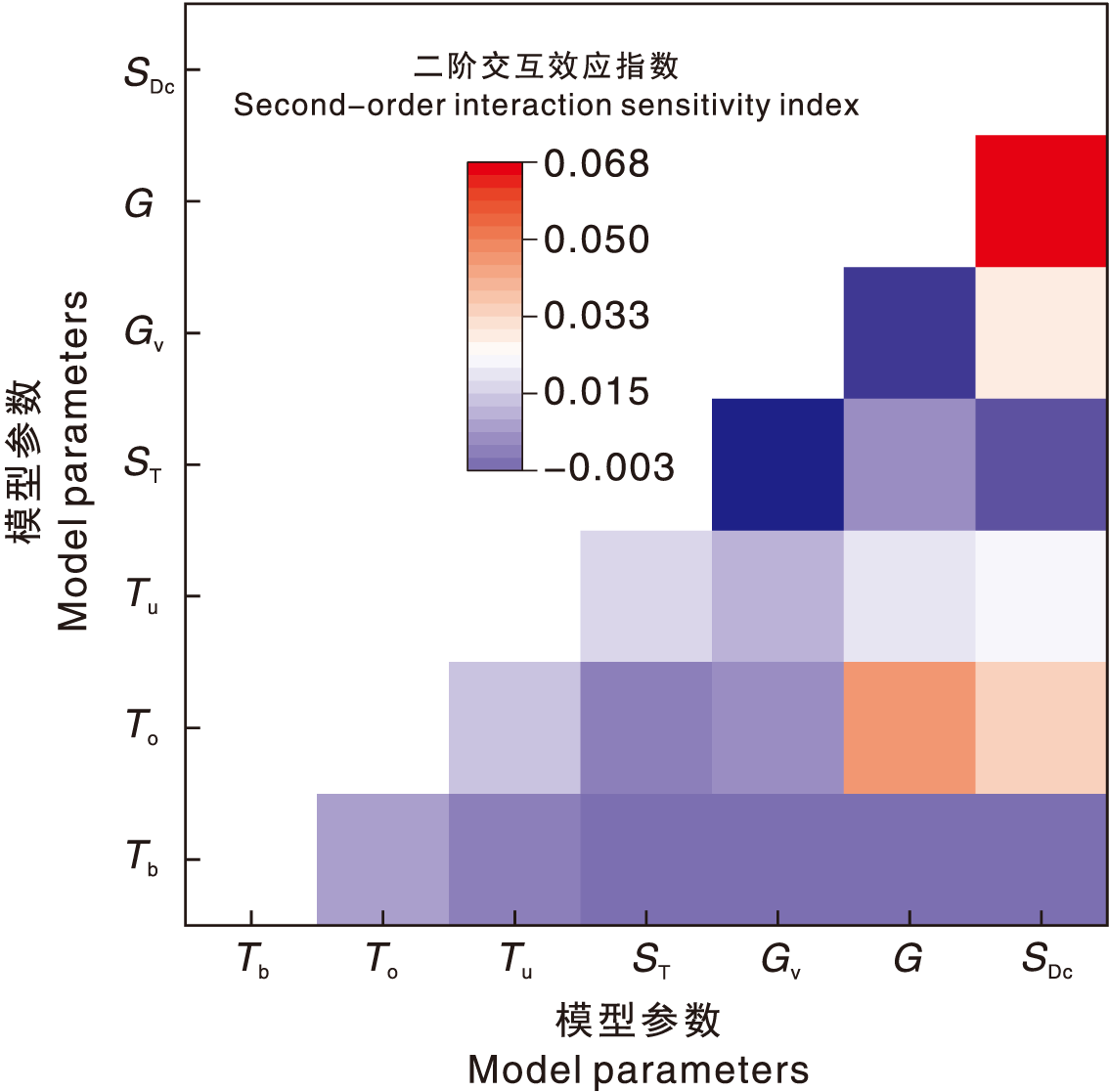

参数 Parameter	参数意义 Parameter description	参数范围 Parameter range	一阶敏感性指数 First-order sensitivity index	总效应敏感性指数 Total sensitivity index
S_Dc	临界日照时数 Critical sunshine duration	8~14 h	0.398 6	0.593 1
G	光周期敏感性 Photoperiod sensitivity	0.000 1~1	-0.007 3	0.173 4
G_v	定植至现蕾所需的潜在热量单元 Potential heat units required from transplanting to floral initiation	20~140 ℃·d	0.162 2	0.291 2
S_T	温度敏感性 Temperature sensitivity	0.1~5.0	0.069 7	0.116 0
T_o	最适温度 Optimal temperature	8.0~25.9 ℃	0.065 4	0.151 8
T_b	下限温度 Lower limit of temperature	0~7.9 ℃	0.003 5	0.017 8
T_u	上限温度 Upper limit of temperature	26~40 ℃	0.013 5	0.073 1

参数 Parameter	参数意义 Parameter description	参数范围 Parameter range	一阶敏感性指数 First-order sensitivity index	总效应敏感性指数 Total sensitivity index
S_Dc	临界日照时数 Critical sunshine duration	8~14 h	0.398 6	0.593 1
G	光周期敏感性 Photoperiod sensitivity	0.000 1~1	-0.007 3	0.173 4
G_v	定植至现蕾所需的潜在热量单元 Potential heat units required from transplanting to floral initiation	20~140 ℃·d	0.162 2	0.291 2
S_T	温度敏感性 Temperature sensitivity	0.1~5.0	0.069 7	0.116 0
T_o	最适温度 Optimal temperature	8.0~25.9 ℃	0.065 4	0.151 8
T_b	下限温度 Lower limit of temperature	0~7.9 ℃	0.003 5	0.017 8
T_u	上限温度 Upper limit of temperature	26~40 ℃	0.013 5	0.073 1

品种Variety	G_v/(℃·d)	G	S_T	T_o/℃
绿雄90 Lyuxiong 90	42	0.316 2	2.074 9	15
耐寒优秀Naihanyouxiu	35	0.316 2	0.672 7	22
台绿5号Tailyu 5	70	0.000 1	0.993 5	9
台绿6号Tailyu 6	56	0.100 0	1.600 0	19
炎秀Yanxiu	33	0.316 2	2.902 8	18
浙青100 Zheqing 100	56	0.100 0	2.074 9	19
浙青161 Zheqing 161	30	0.562 3	1.233 8	19
浙青227 Zheqing 227	29	0.562 3	1.345 4	18
中青319 Zhongqing 319	75	0.000 1	0.141 4	19

品种Variety	G_v/(℃·d)	G	S_T	T_o/℃
绿雄90 Lyuxiong 90	42	0.316 2	2.074 9	15
耐寒优秀Naihanyouxiu	35	0.316 2	0.672 7	22
台绿5号Tailyu 5	70	0.000 1	0.993 5	9
台绿6号Tailyu 6	56	0.100 0	1.600 0	19
炎秀Yanxiu	33	0.316 2	2.902 8	18
浙青100 Zheqing 100	56	0.100 0	2.074 9	19
浙青161 Zheqing 161	30	0.562 3	1.233 8	19
浙青227 Zheqing 227	29	0.562 3	1.345 4	18
中青319 Zhongqing 319	75	0.000 1	0.141 4	19
